B8Q5S-CE
Height: 3.4m
Floodlights: 800W LED Balloon
Mast: Telescopic Aluminum Mast

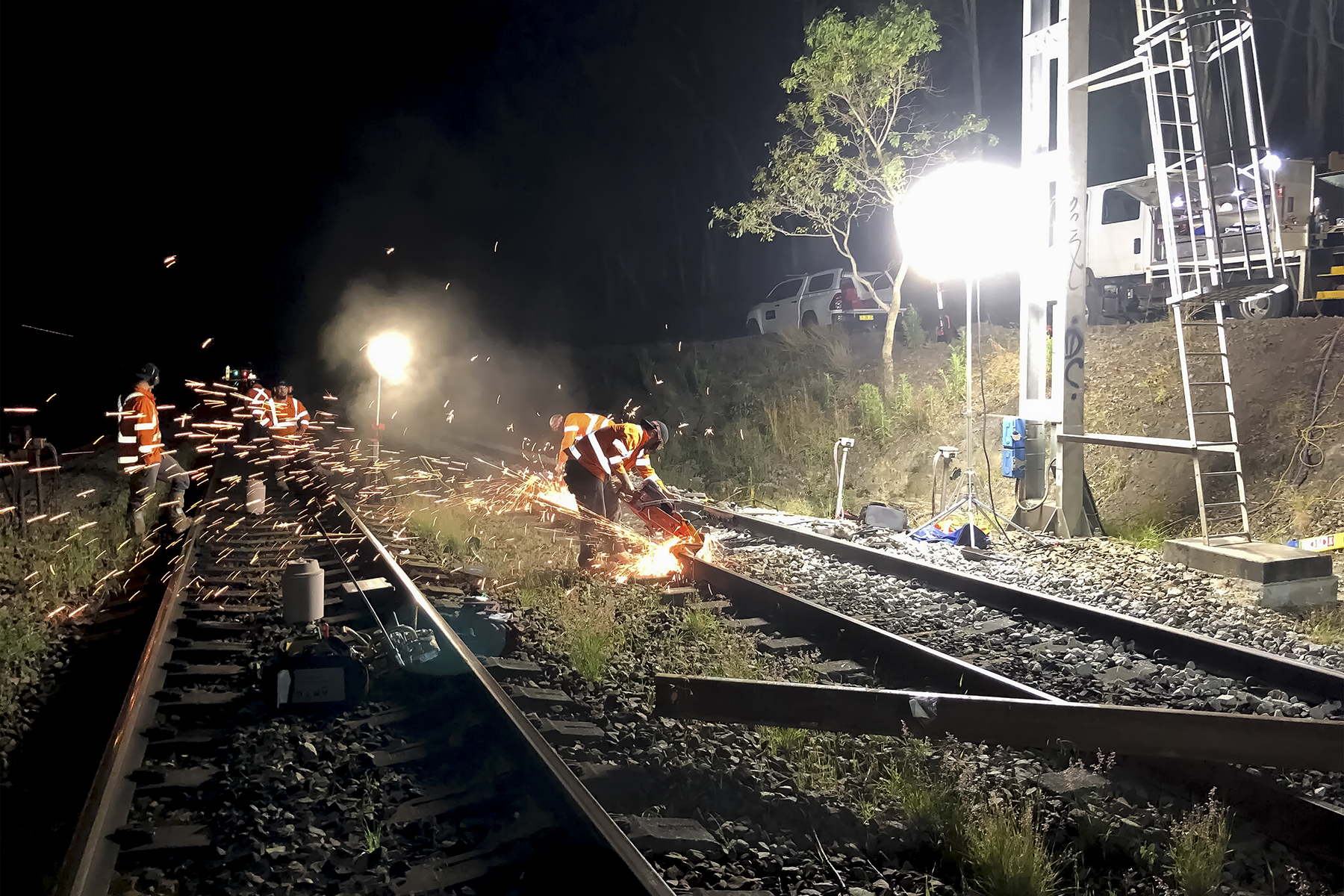

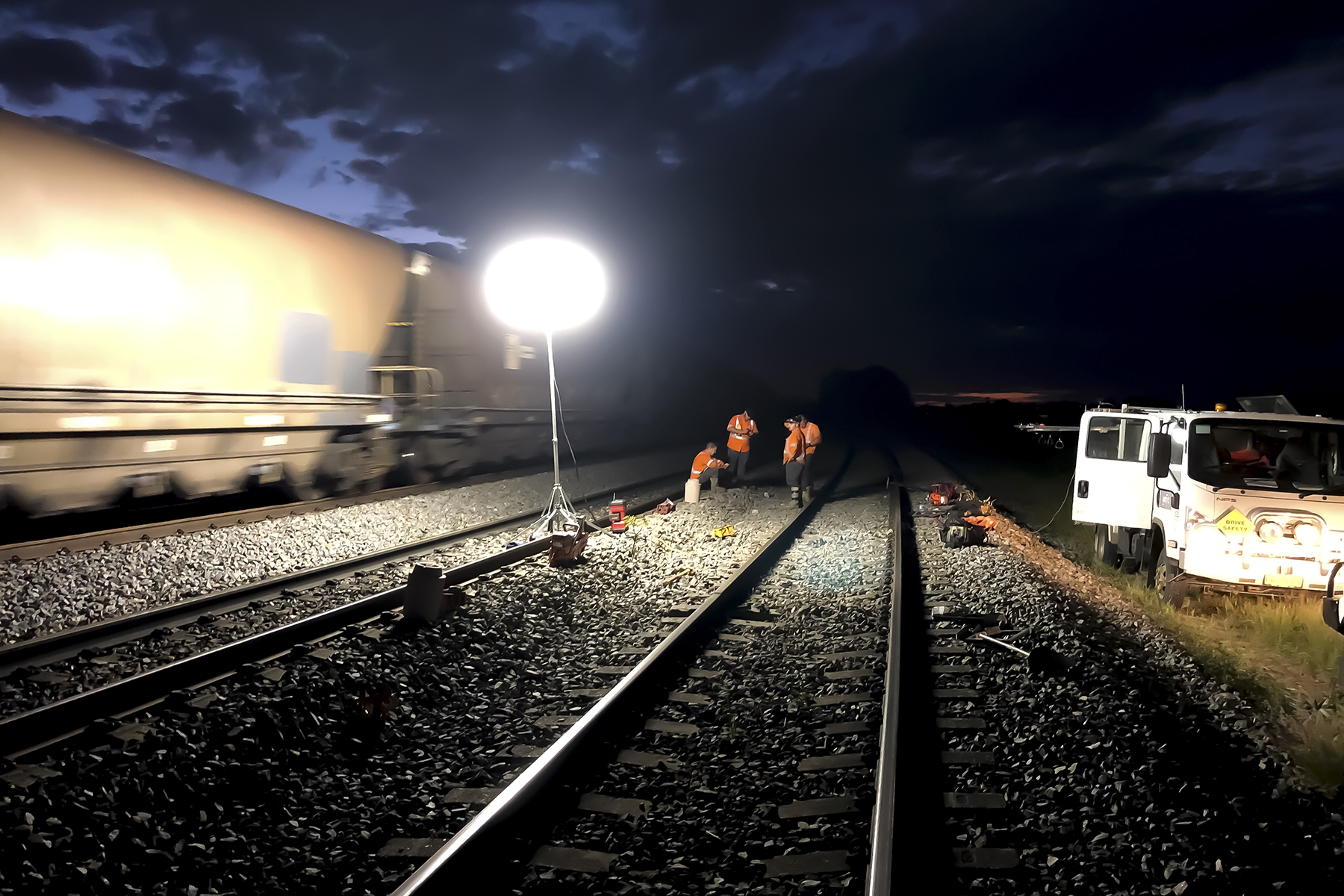

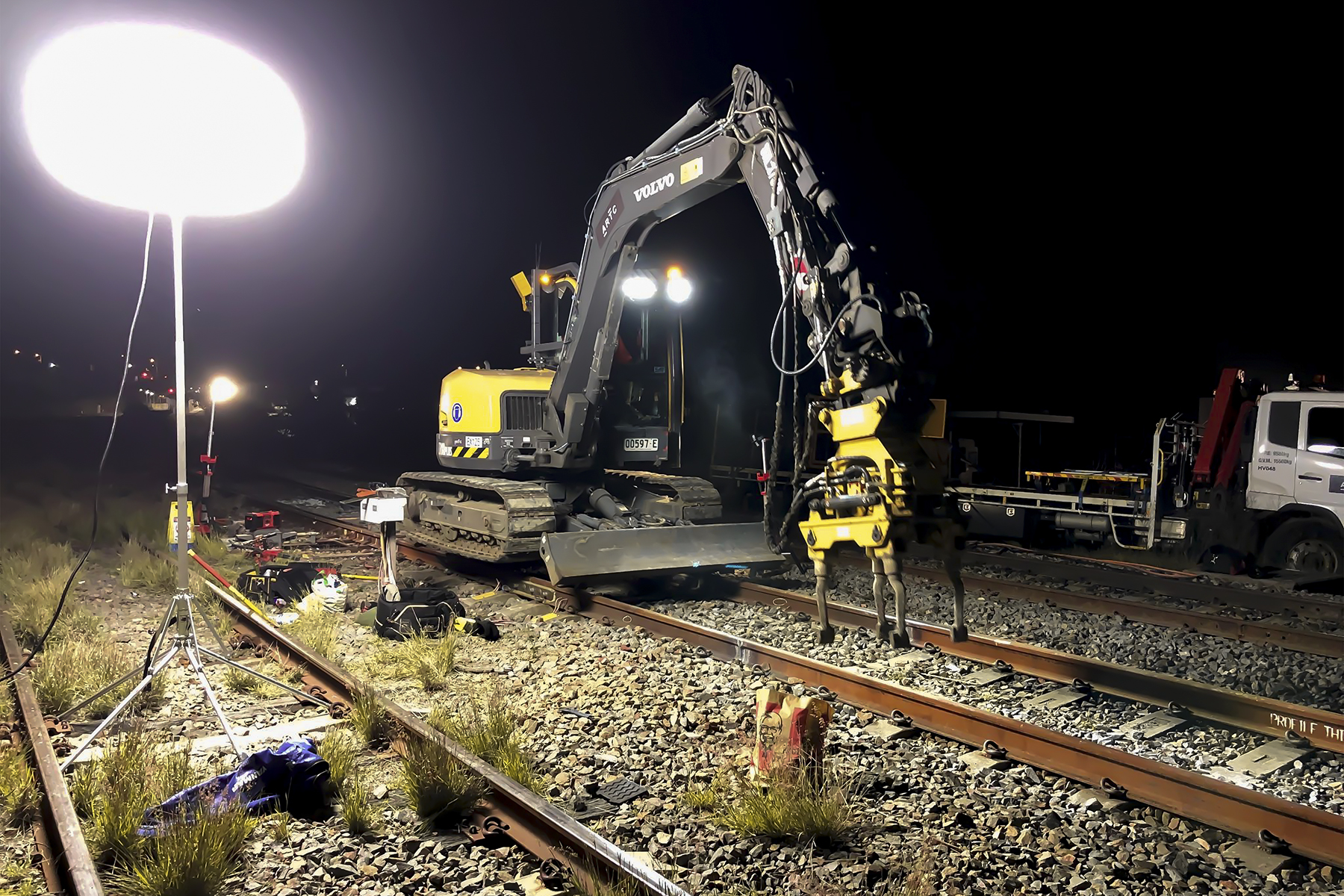

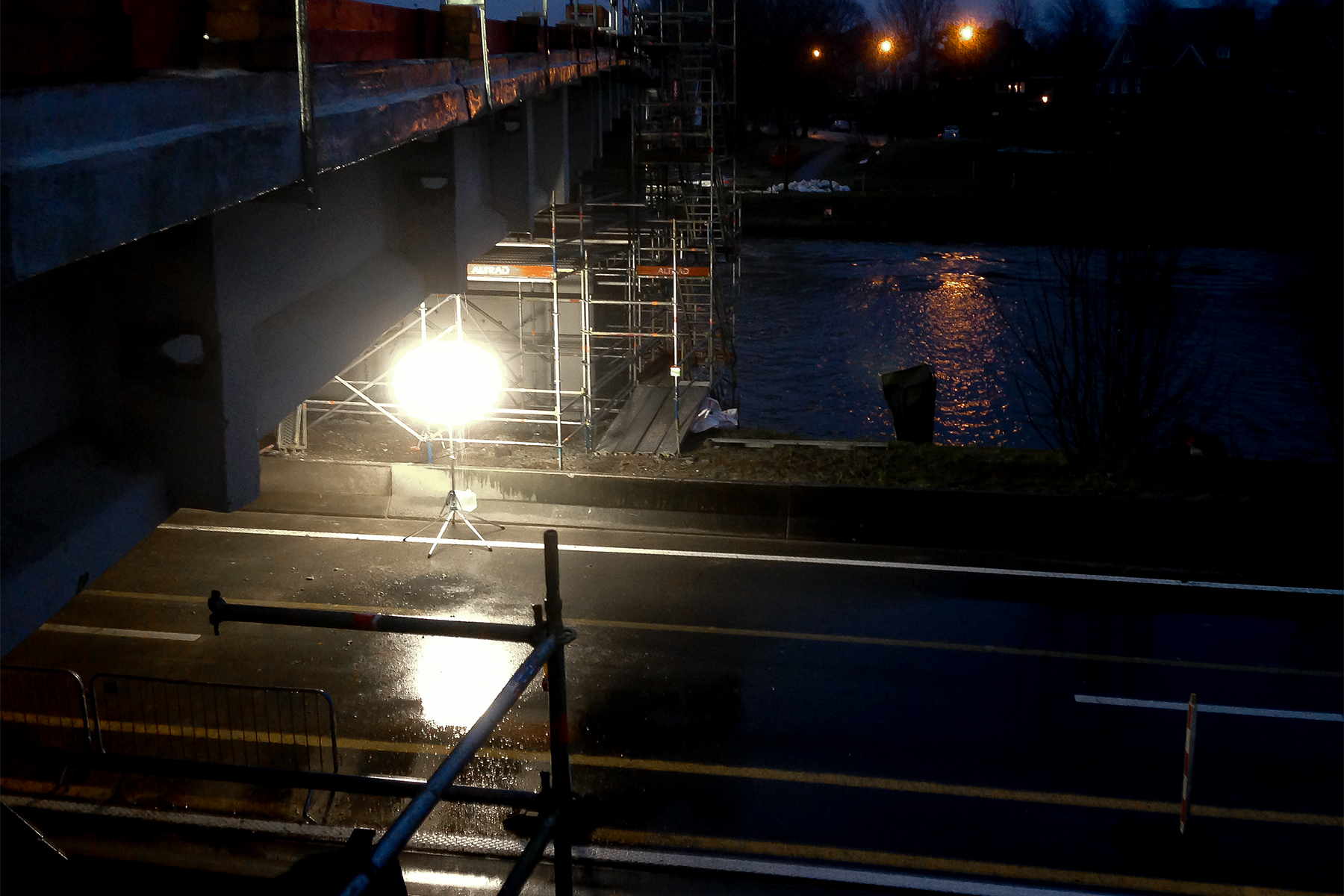

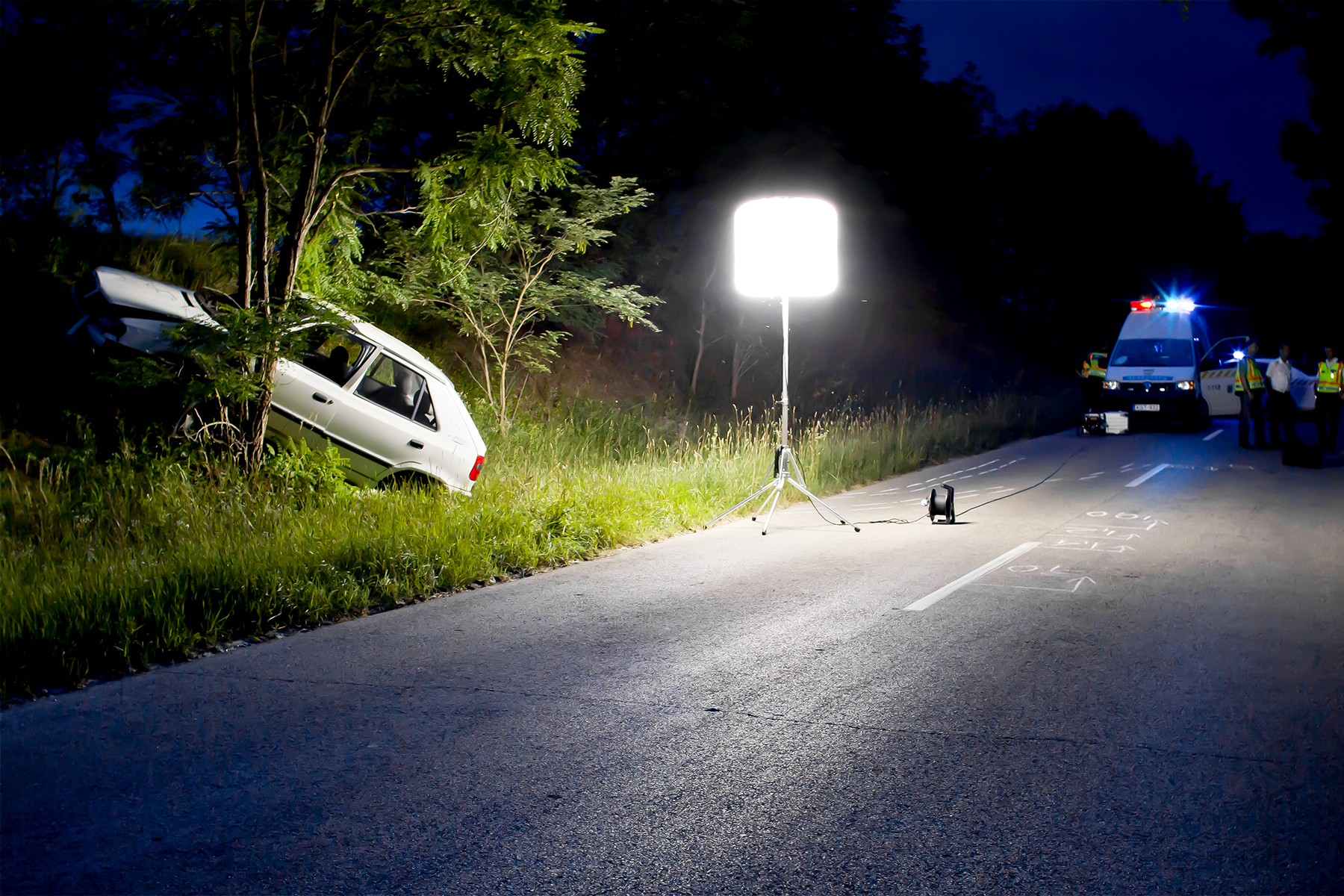

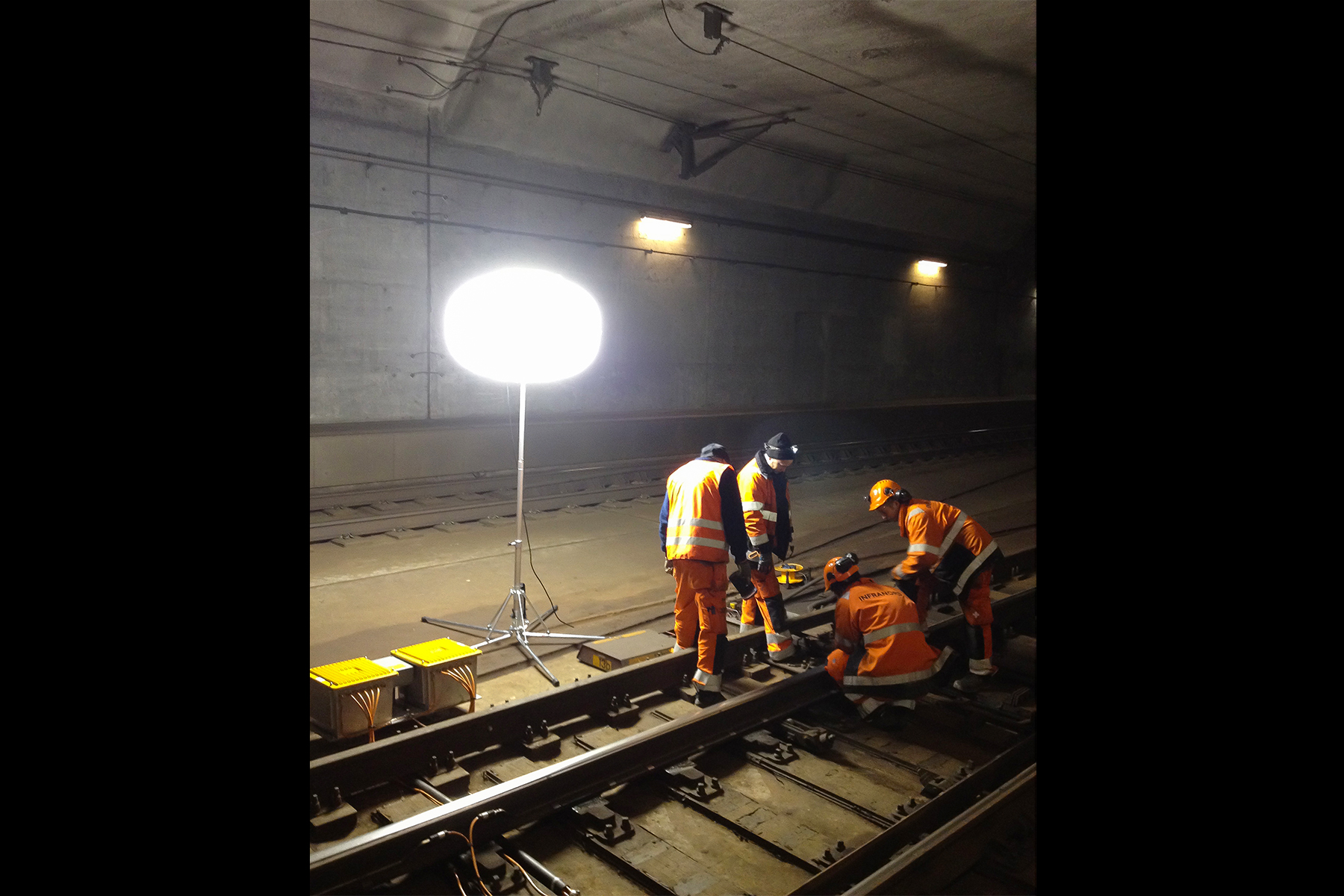

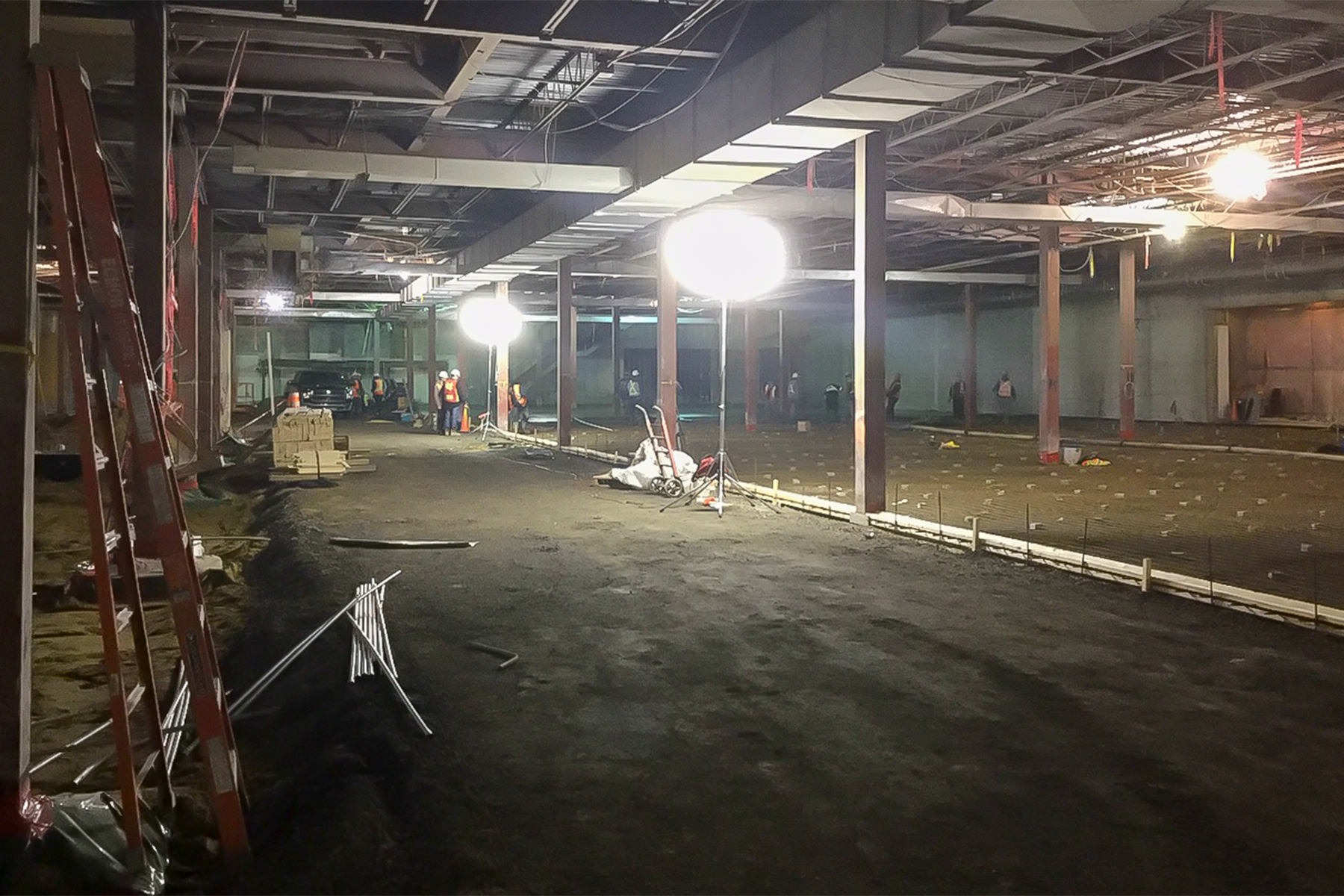

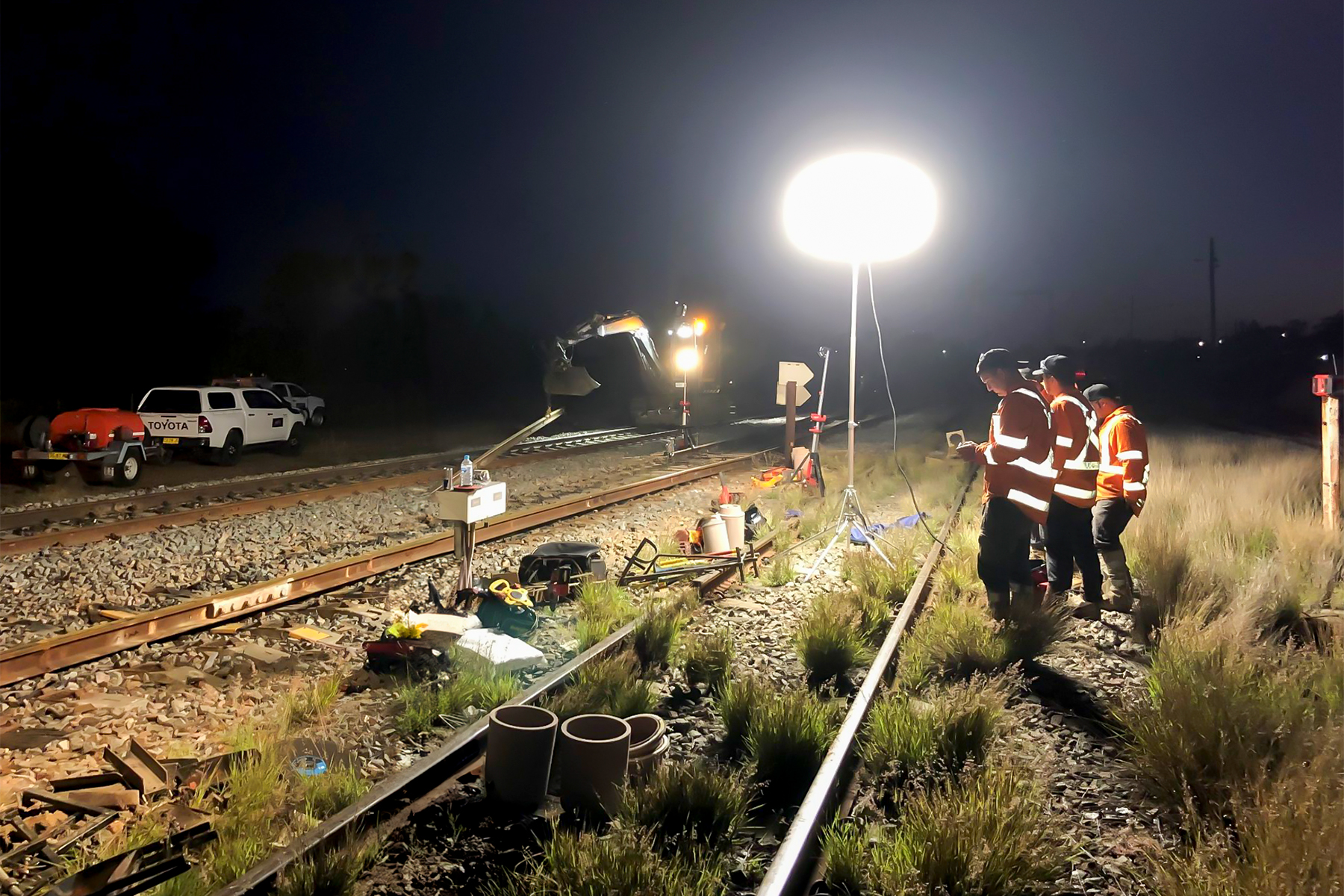

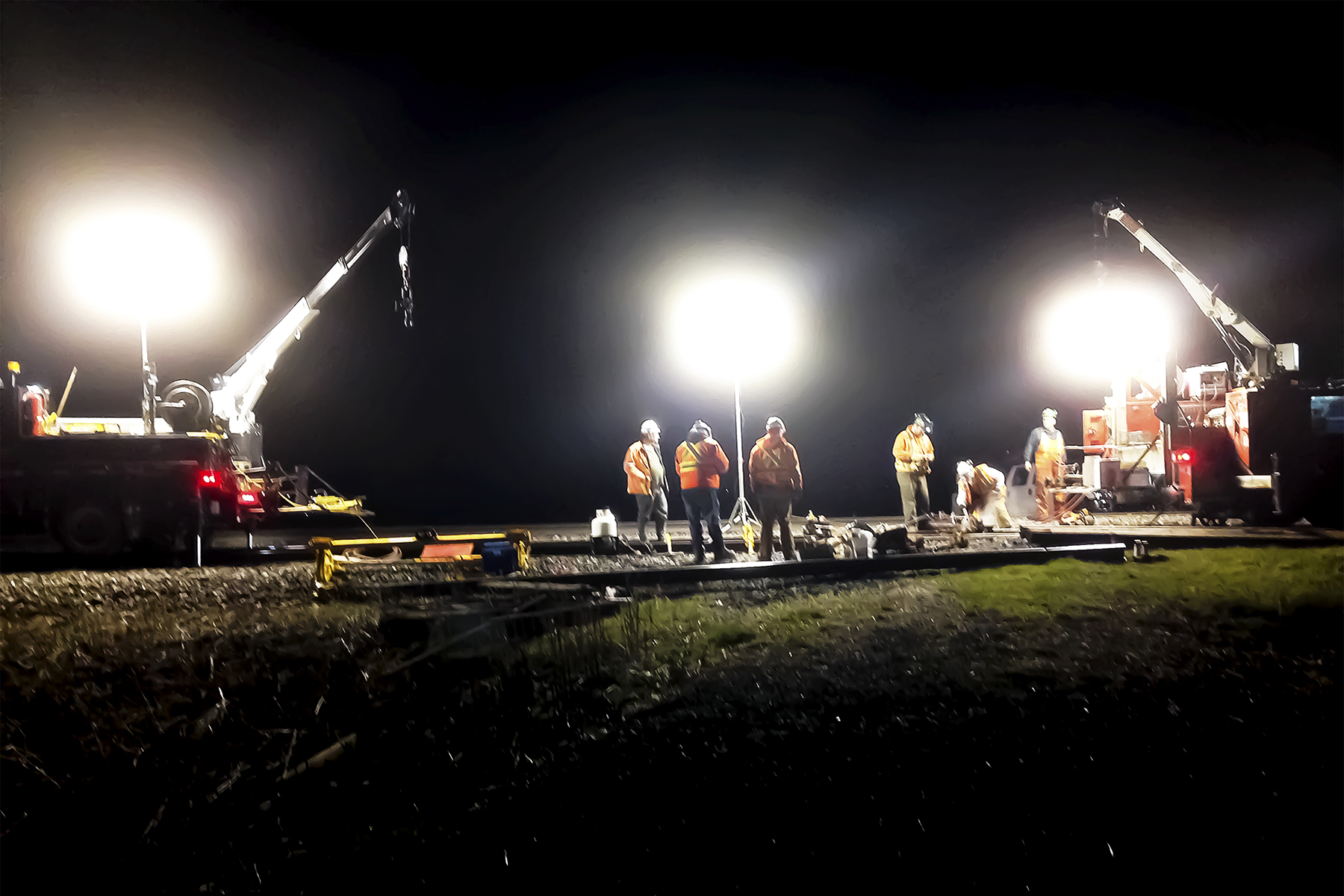

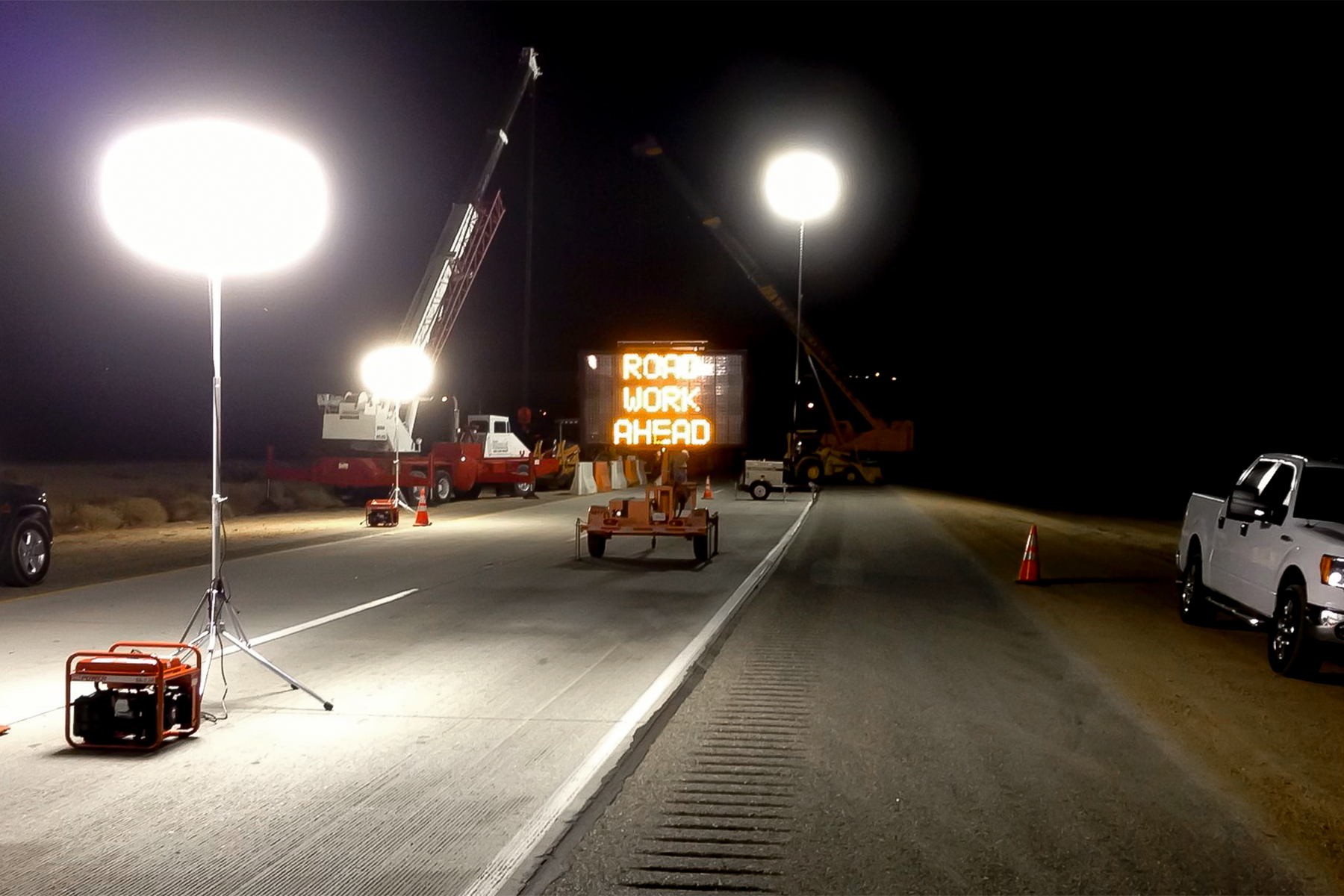

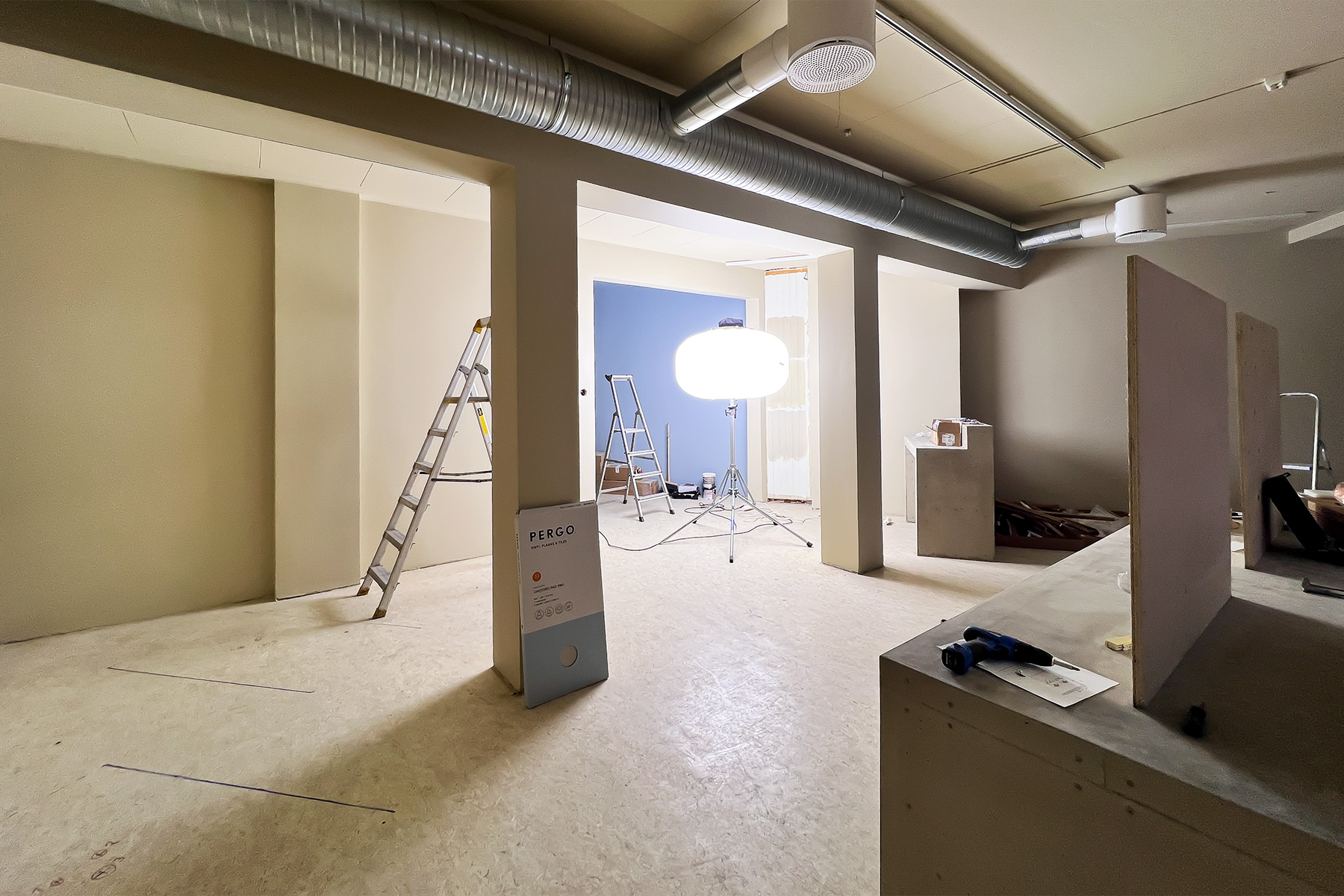

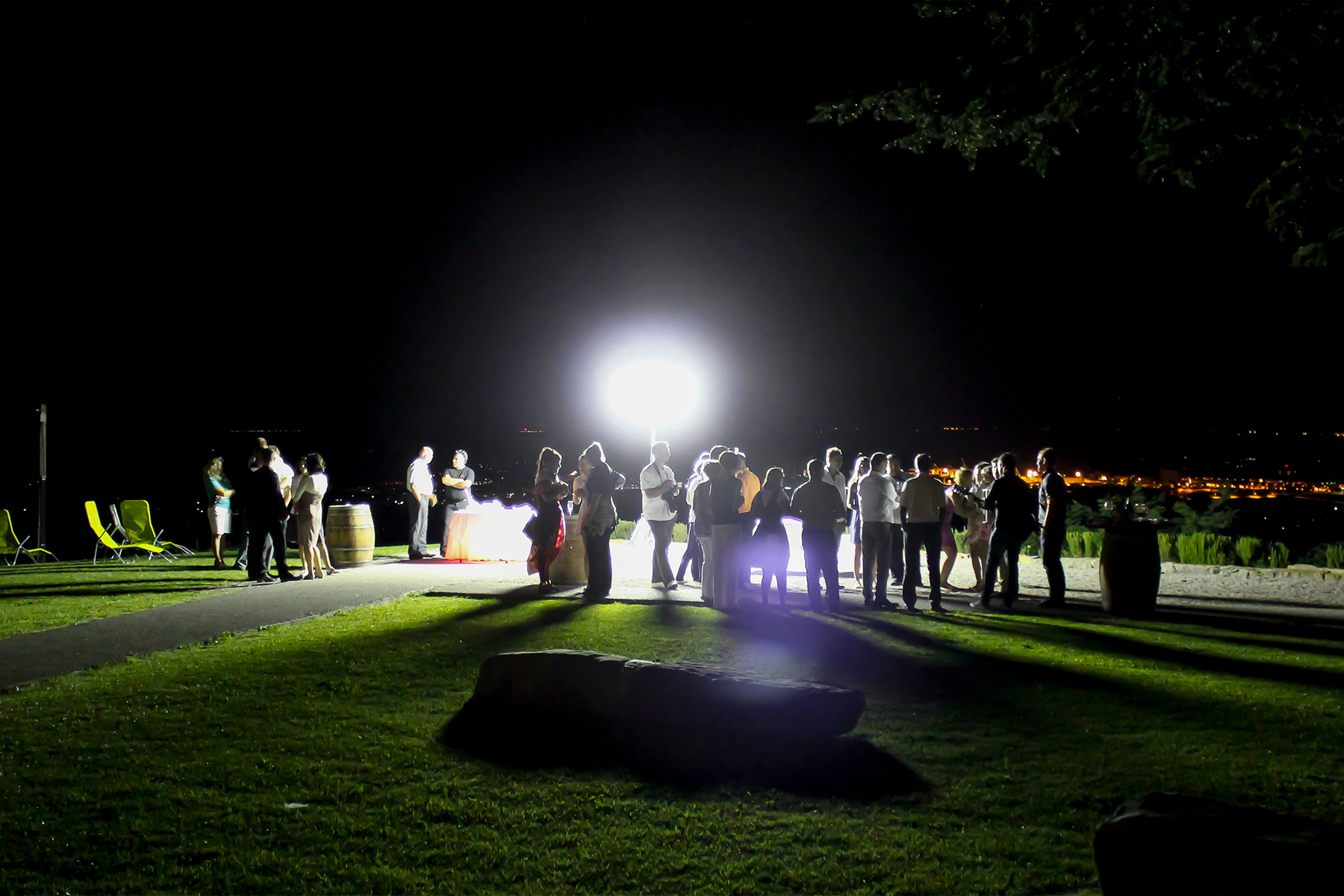

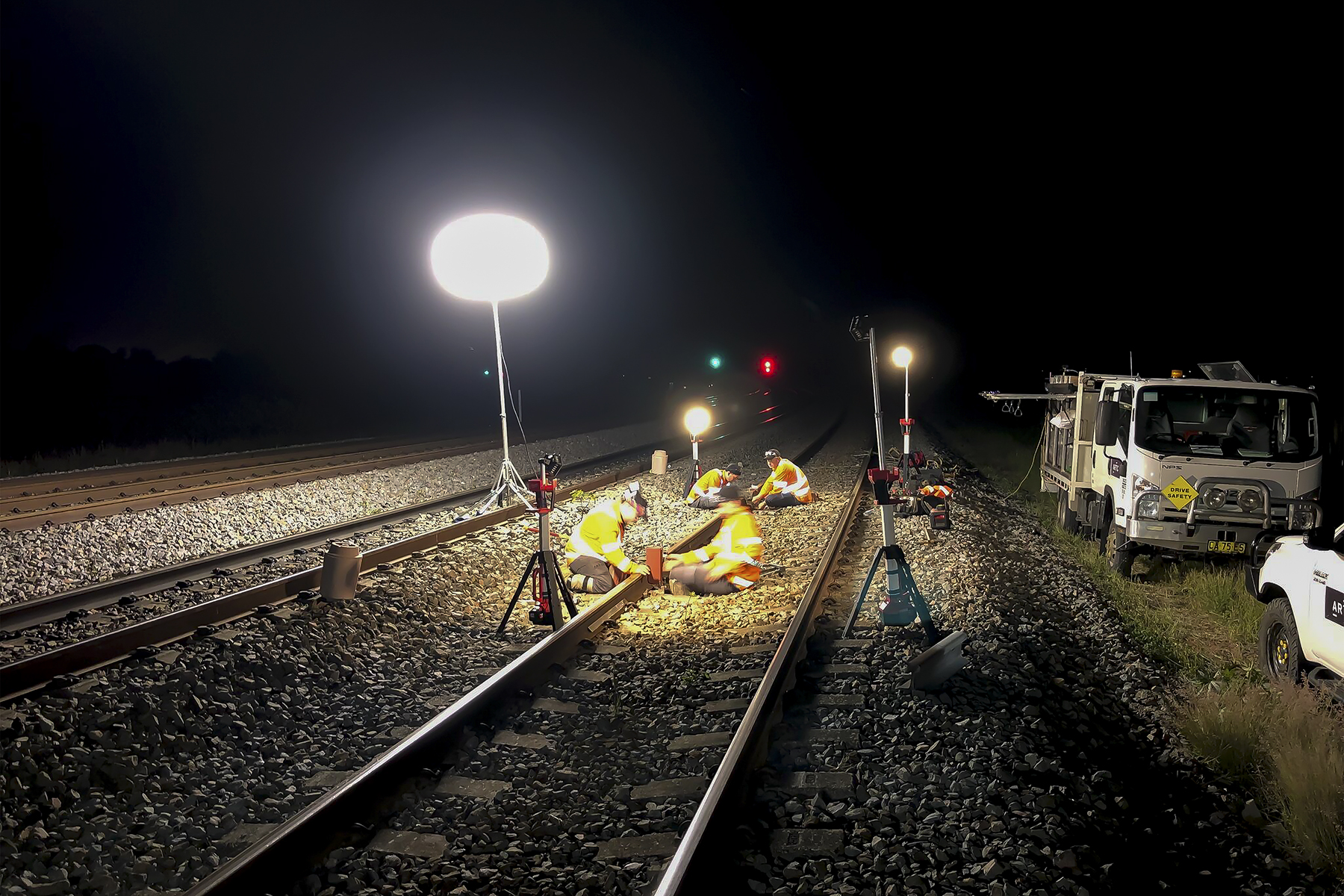

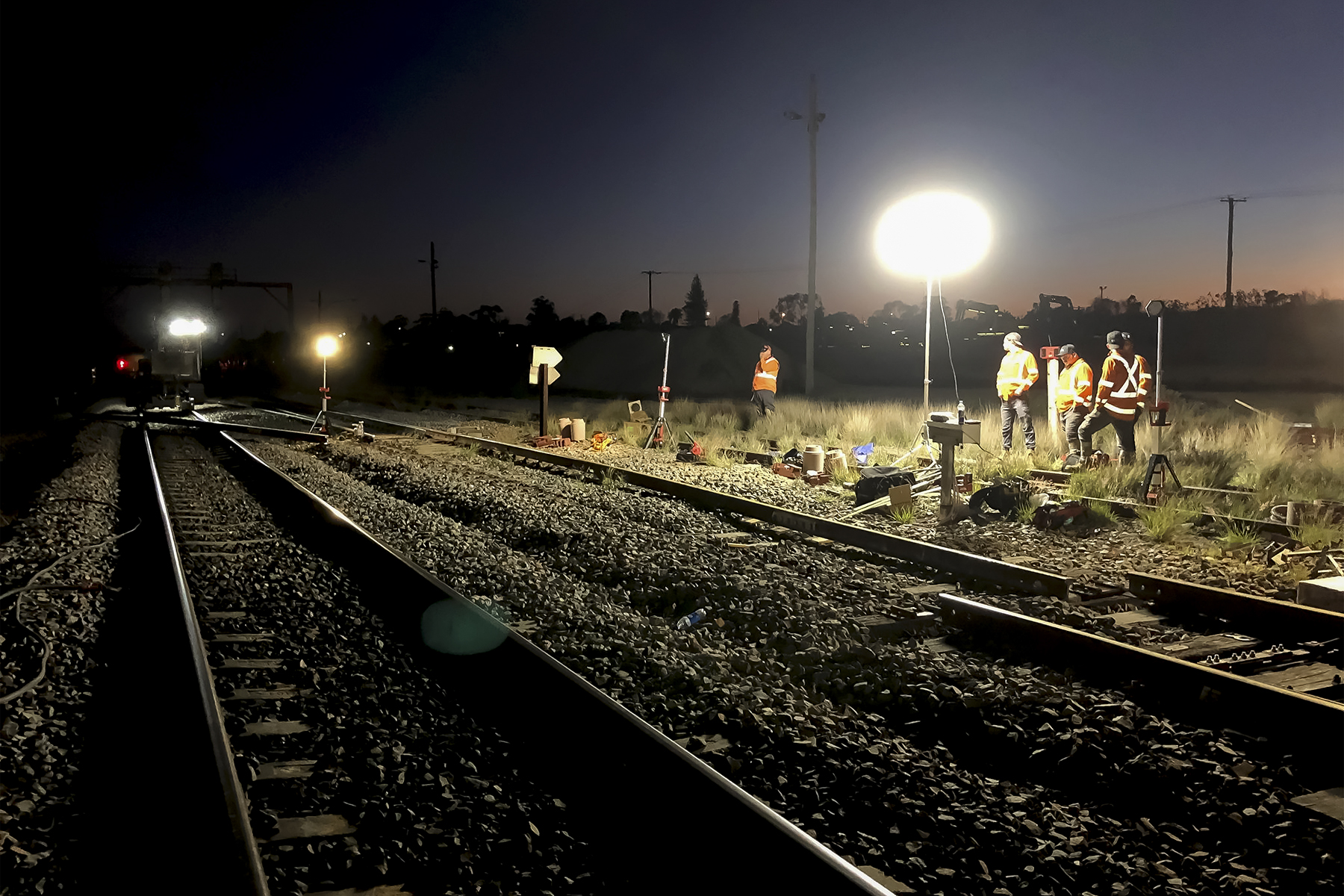

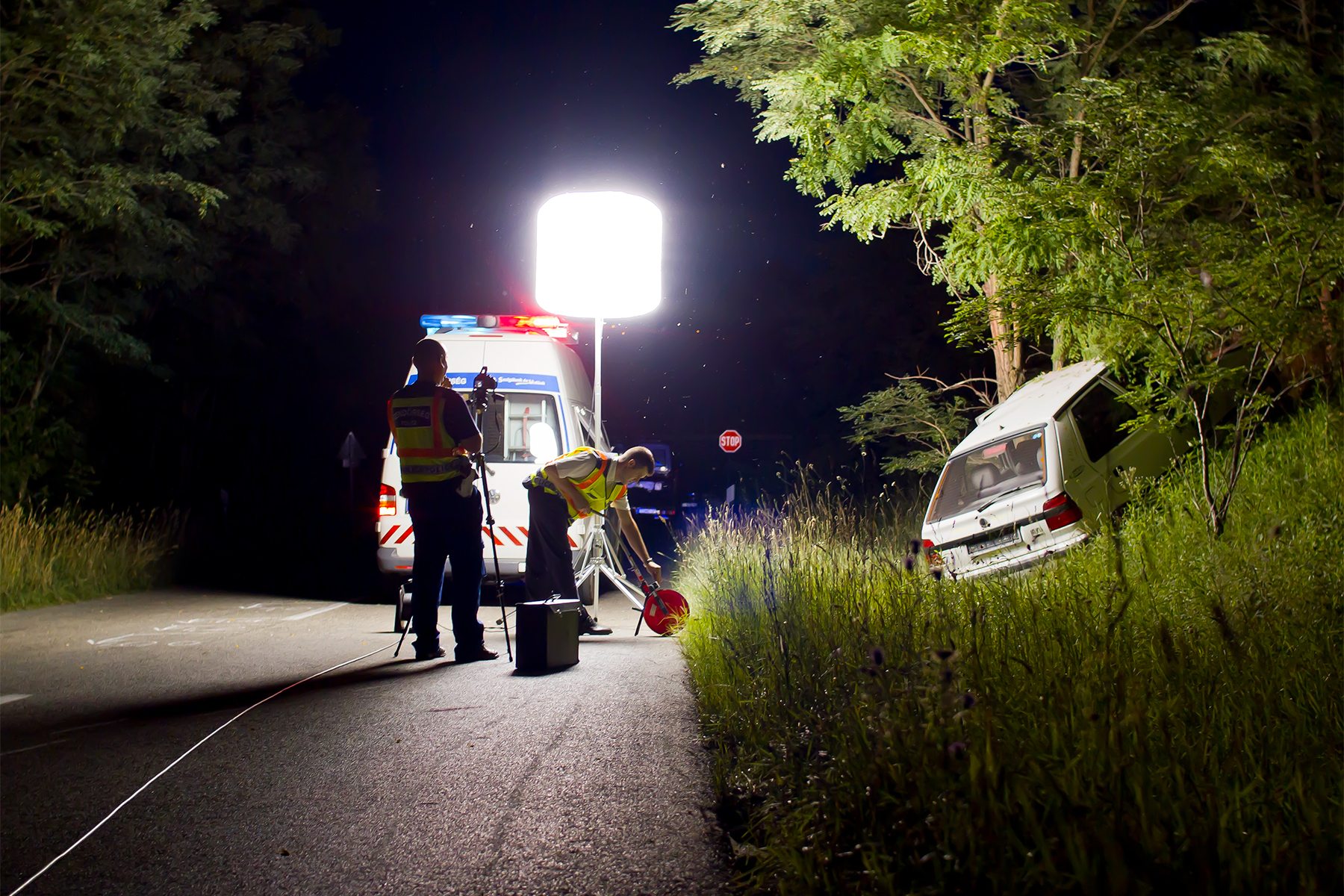

LIGHT BOY offers exceptional LED technology to our line. LED lighting is safer, producing significantly less heat than Metal Halide bulbs while offering quality color consistency, immediate strike/re-strike operations, and a long operational life. The B8Q5S comes standard with a shock-absorbed, telescopic 3-stage pentapod stand. With its powerful 800W LED system, and 3-position dimmer design, this unit provides optimum glare-free lighting to a host of construction, quick response, and special event applications.
LIGHT BOY LED LIGHTING SYSTEM
Quick deployment stand
The stand can be set up with one touch and adjusted to two different heights.
Gas Shock Absorbers Mast
The mast is equipped with a gas-assist lowering system. This system allows the mast to be retracted slowly when released.
Compact and Light weight
The entire lighting system can be carried around easily in two carrying cases.
Integrated protective cover
The protective cover can be folded and stored on the top of the balloon assembly during operations.
Three Stage Dimming Control
The dimming control allows changing the light output. Select appropriate brightness depending on applications. 800W / 600W / 400W / OFF
Specification
| Model | B8Q5S-CE | ||
| Voltage (V) | AC90~240 | ||
| Frequency (Hz) | 50/60 | ||
| Current (A) | 3.6(AC230V, 800W) | ||
| Lamp | Type | LED | |
| Dimming Control | 3 Stages : 800W/600W/400W | ||

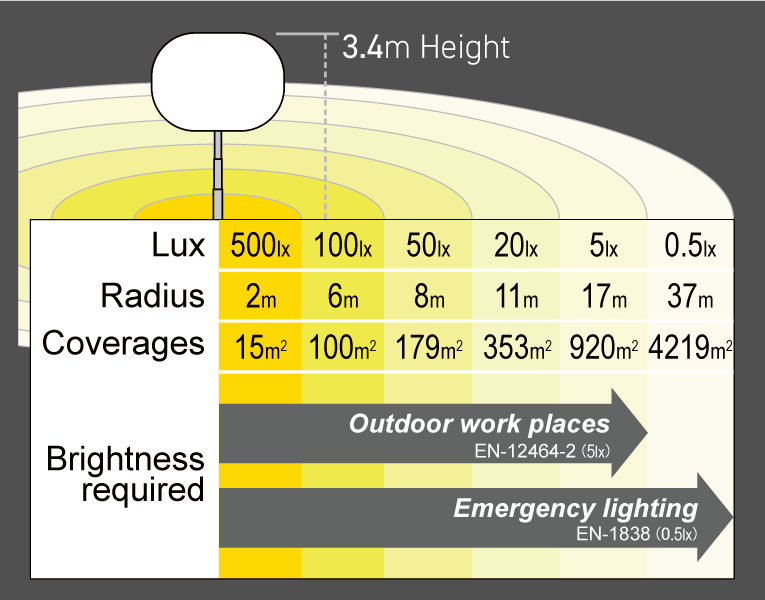

| Total Luminous Flux (lm) | 110,000/90,000/67,000 | ||
| Temperature (℃) | -10~40 | ||
| Mast | Mast | Telescopic Aluminum Mast | |
| Mast Operating | Hand Operation | ||
| Dimension | 1st Level (L×W×H) (mm) | 1615×1700×1720~3050 | |
| 2nd Level (L×W×H) (mm) | 1370×1440×2105~3435 | ||
| Storage (L×W×H) (mm) | Balloon | 200×220×690 | |
| Pentapod | 190×190×1015 | ||
| Carry Case | 220×220×1120 | ||
| Weight | Balloon (kg) | 11.2 | |
| Pentapod (kg) | 10.7 | ||
| Carry Case (kg) | 0.7 | ||
| Total Weight (kg) | 22.6 | ||
| Appropriate Generator | 870W and above | ||
Notice: Features and equipment specifications are subject to change without notice.
