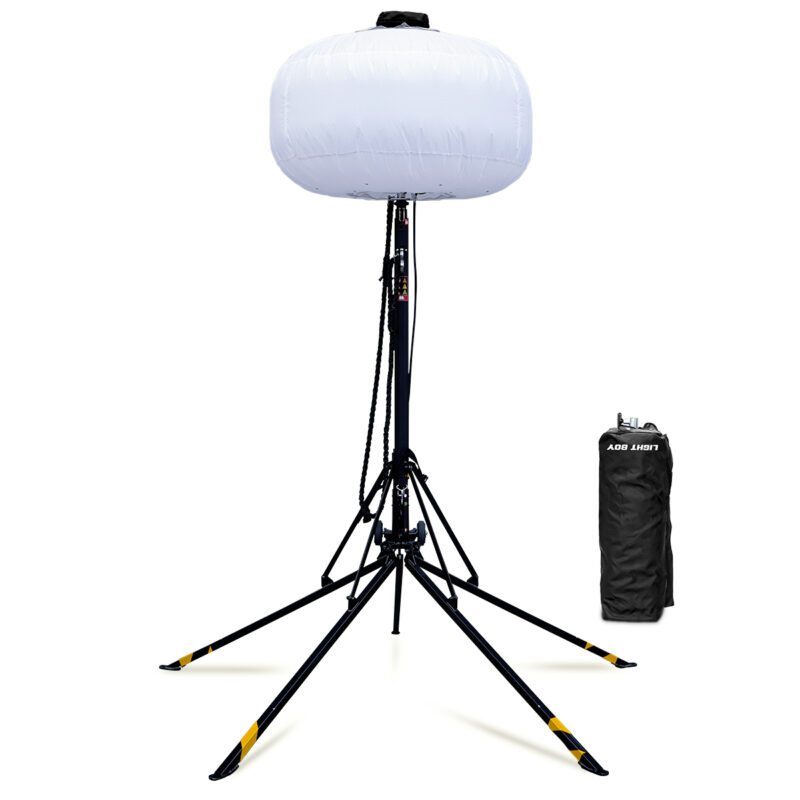

B8Q5J-CE

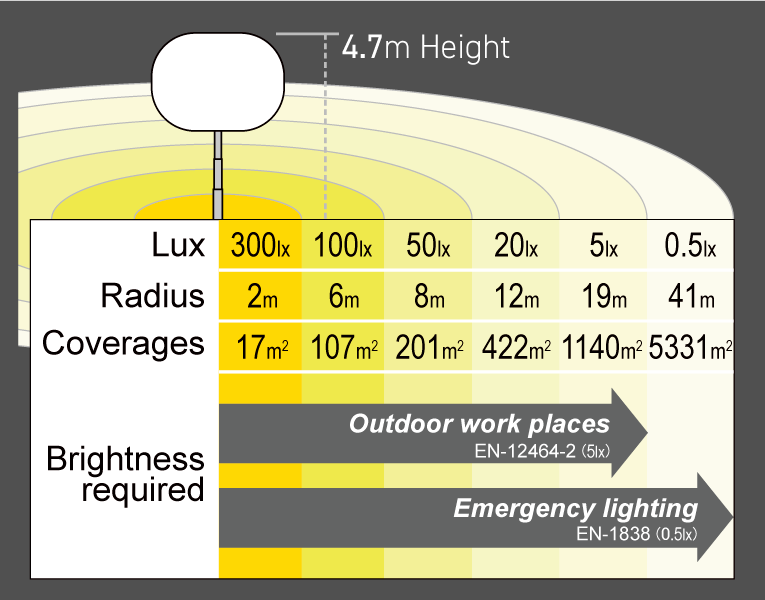

Height: 4.7m
Floodlights: 800W LED Balloon
Mast: Telescopic Aluminum Mast
800w Balloon lamp with self-rising mast illuminate 2000sqm with Glare-Free lighitng. B8Q5J sets up in a few seconds.
With the innovative integration of self-rising mast, setting up the lighting has become easier than ever before. No manual effort is required, simply release the safety lock, then the mast ascends antomatically up to 5m. This saves valuable time, allowing you to focus on your job.
Self extending mast
LIGHT BOY LED LIGHTING SYSTEM
Self-Extending Mast
Once the safety stopper is released, the mast will automatically extend up to a maximum of 5 meters.
Quick deployment stand
The stand can be set up with one touch and adjusted to two different heights.
Compact and Light weight
The entire lighting system can be carried around easily in two carrying cases.
Integrated protective cover
The protective cover can be folded and stored on the top of the balloon assembly during operations.
Three Stage Dimming Control
The dimming control allows changing the light output. Select appropriate brightness depending on applications. 800W / 600W / 400W / OFF
Specification
| Model | B8Q5J-CE | ||
| Voltage (V) | AC90~240 | ||
| Frequency (Hz) | 50/60 | ||
| Lamp | Type | LED | |
| Dimming Control | 3 Stages : 800W/600W/400W | ||
| Total Luminous Flux (lm) | 110,000/90,000/67,000 | ||
| Temperature (℃) | -10~40 | ||
| Mast | Mast Type | Telescopic system Up to 3rd Height(with gas spring) | |
| Mast Operating | Self-rising/manual contraction | ||
| Dimension | 1st Level (LxWxH) (mm) | 2200x2255x2225-4310 | |
| 2nd Level (LxWxH) (mm) | 1945x2005x2625-4710 | ||
| Storage (LxWxH) (mm) | Balloon | 220x200x700 | |
| Pentapod | 245x275x1455 | ||
| Weight | Balloon (kg) | 10.8 | |
| Cable (kg) | 1.6 | ||
| Mast (kg) | 8.0 | ||
| Pentapod (kg) | 16.0 | ||
| Total Weight (kg) | 36.4 | ||
| Appropriate Generator | Output 0.9kVA or more | ||
Notice: Features and equipment specifications are subject to change without notice.
