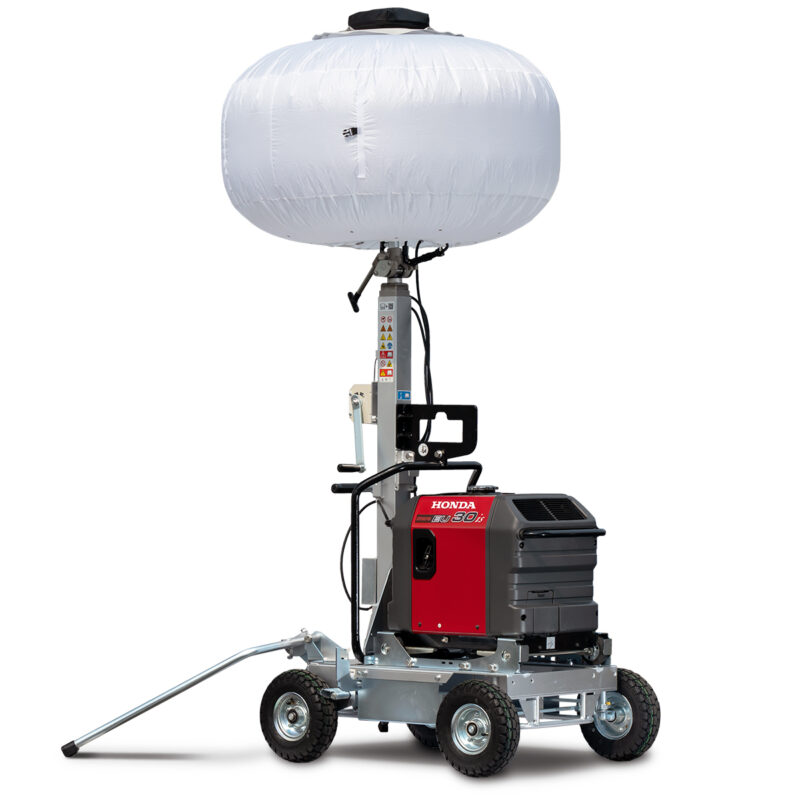

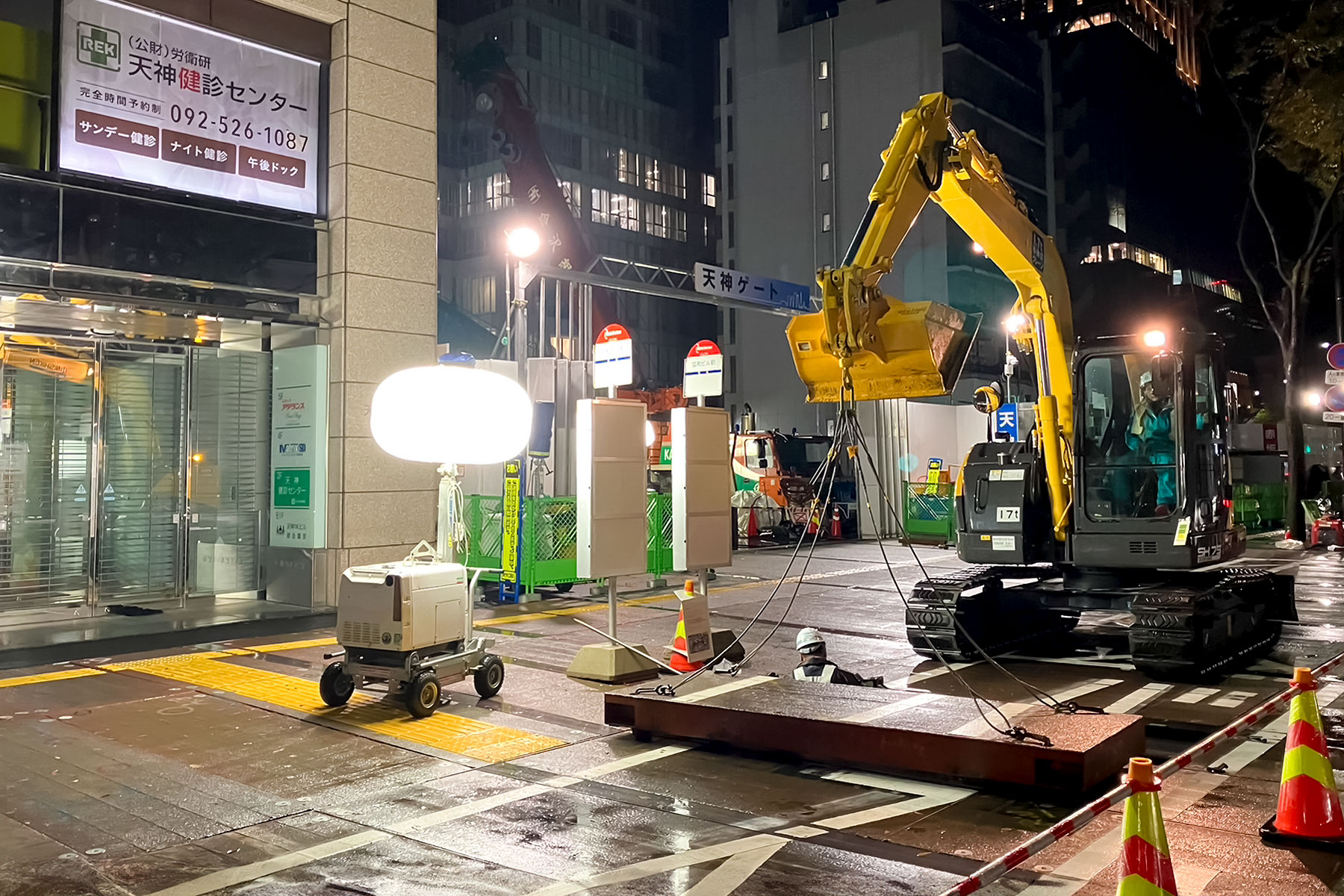

※Shown with a generator for illustration purpose only

LED Balloon

B8CS-A-CE

  • LED 800W
  • 110 000 lumen output

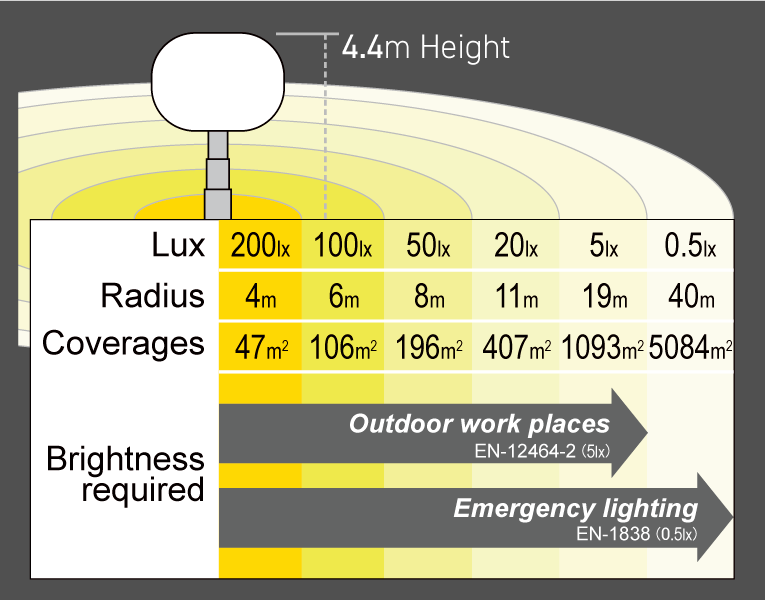

  • Illumination Range1320㎡
  • 4.4m Height
  • Telescopic Mast

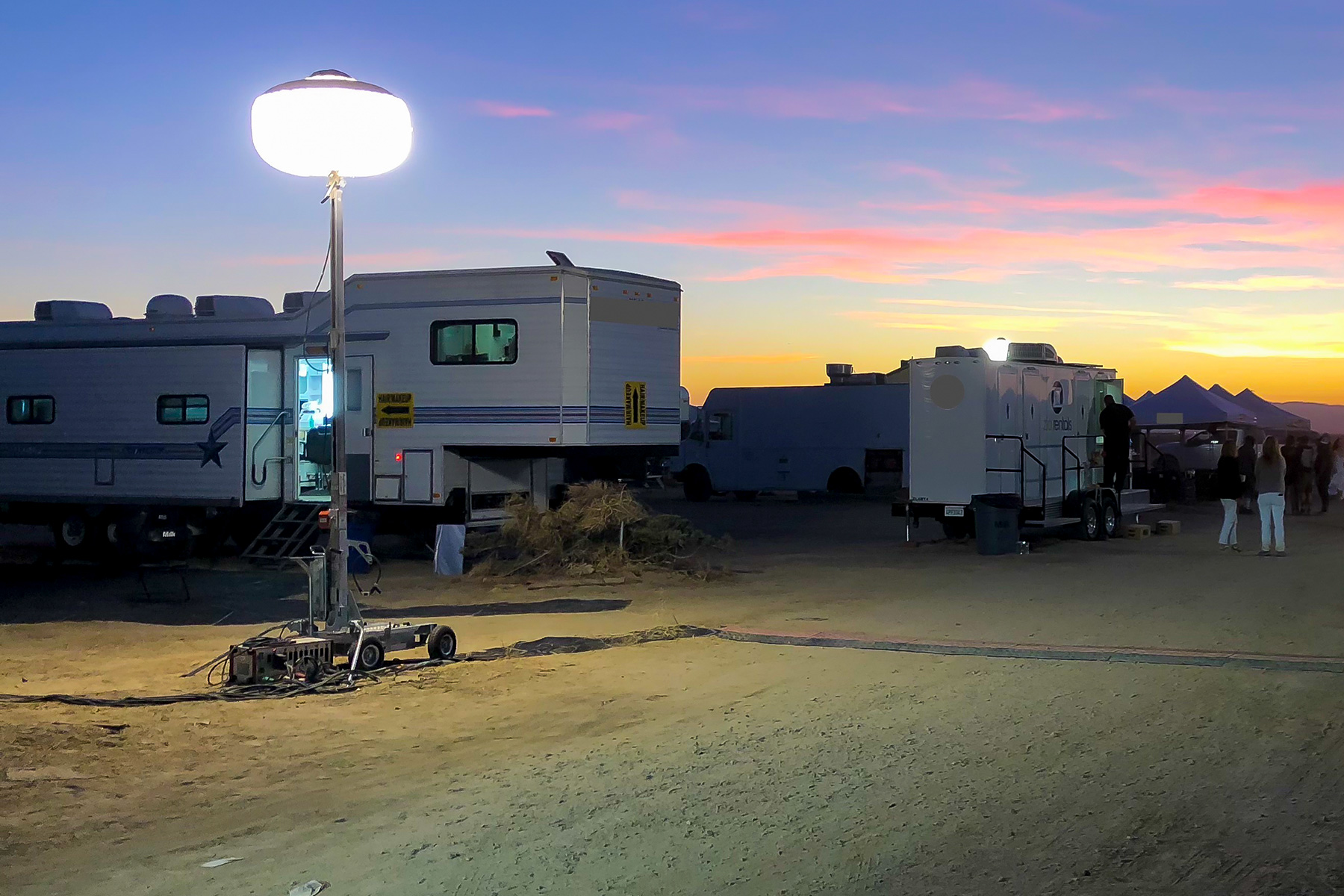

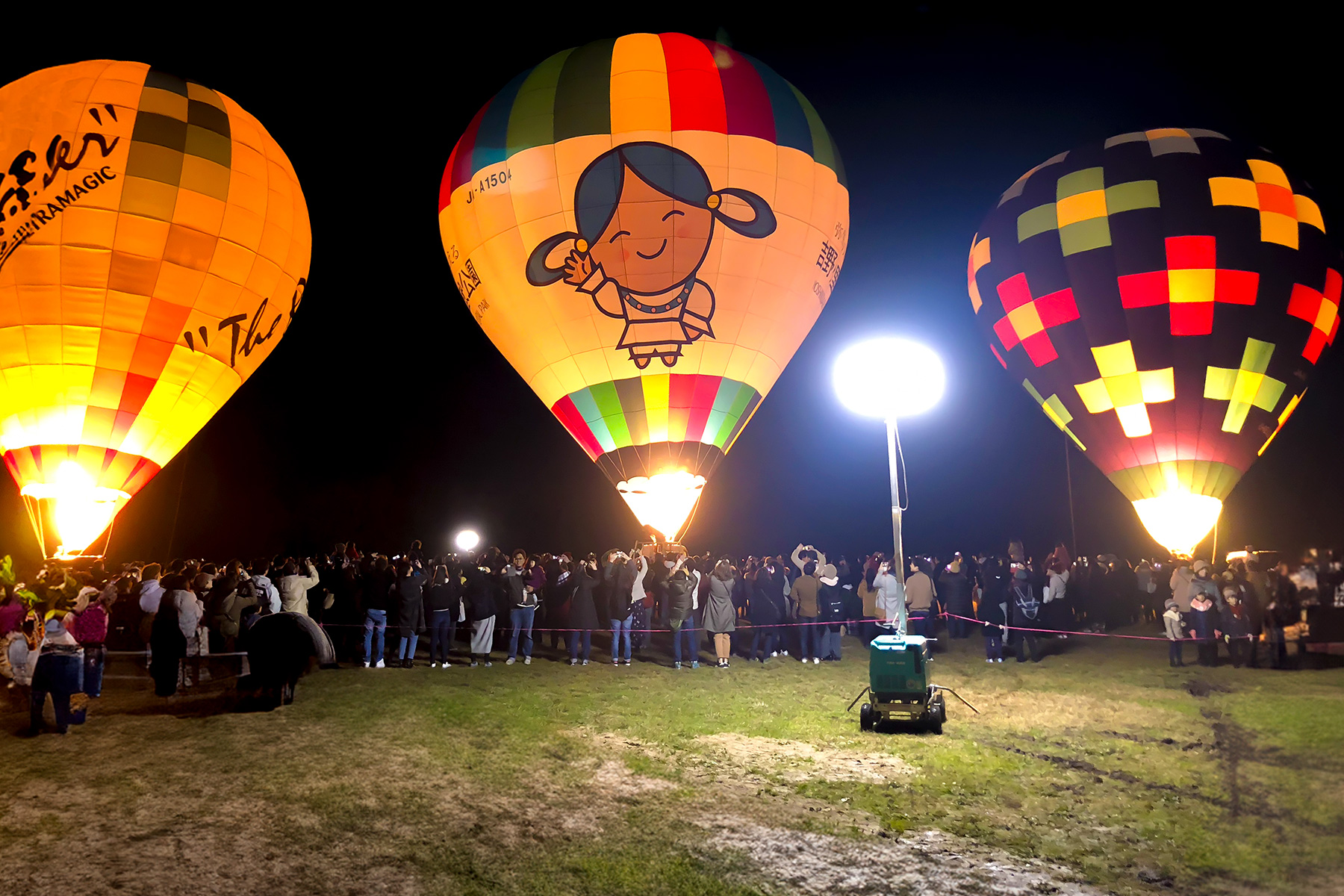

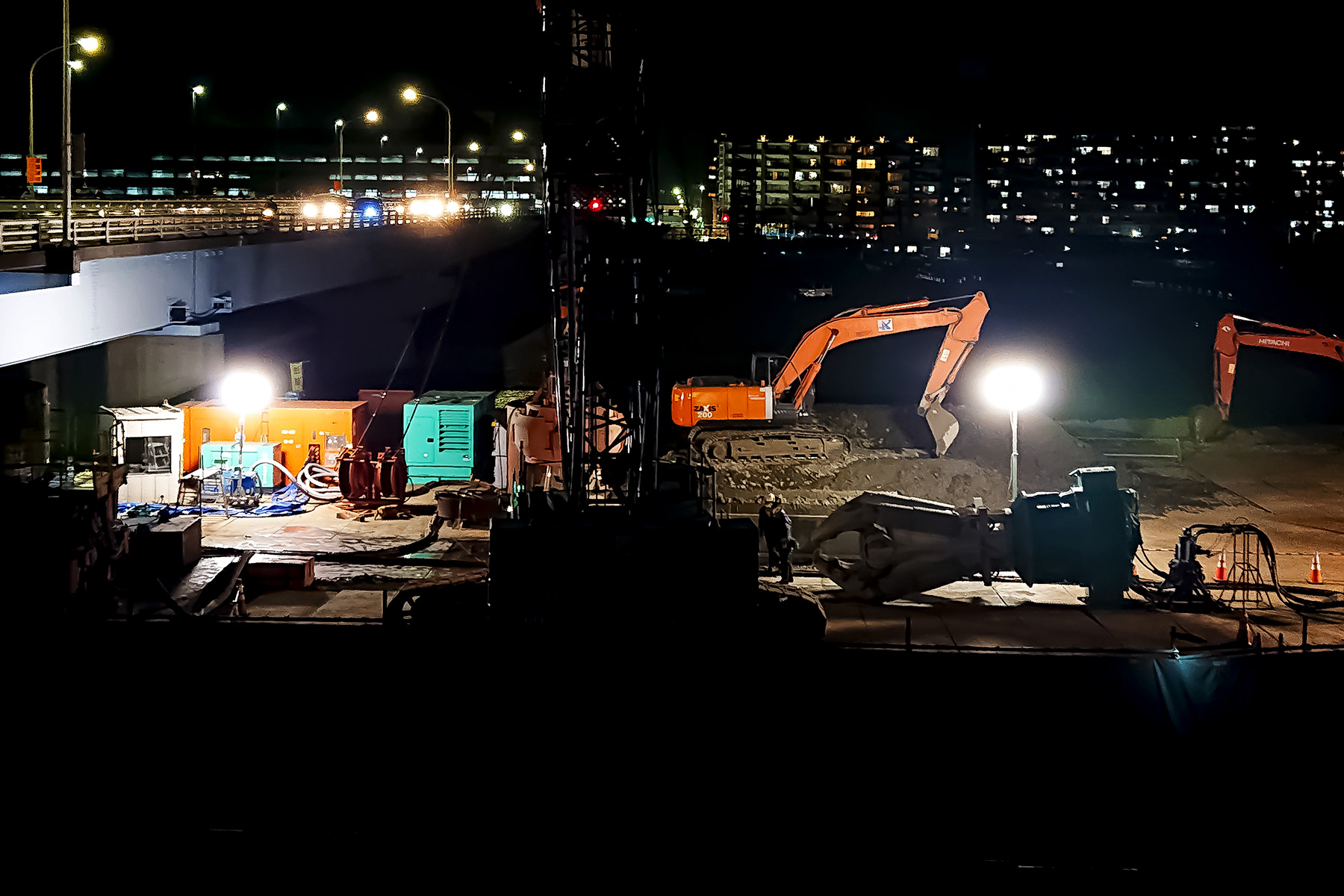

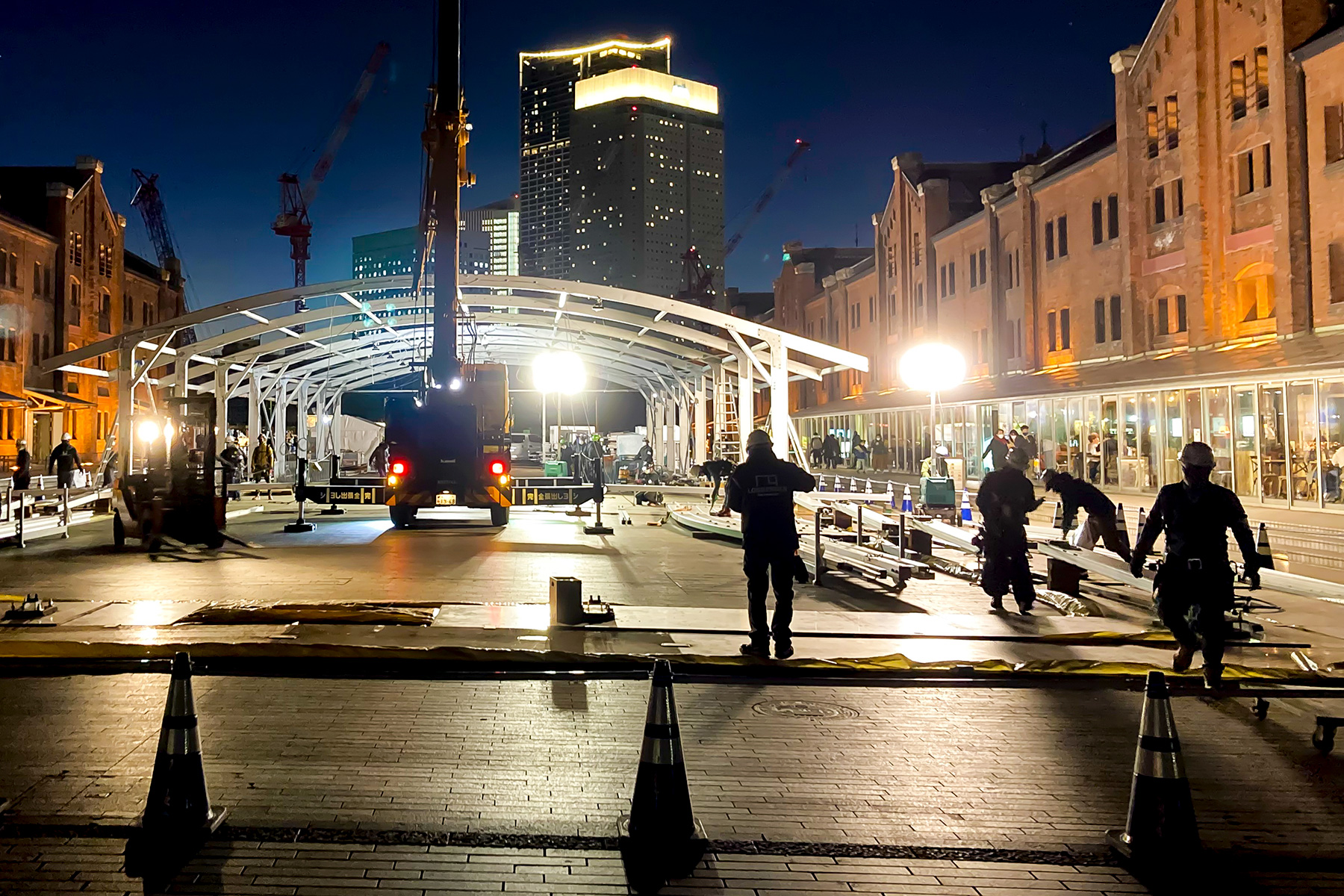

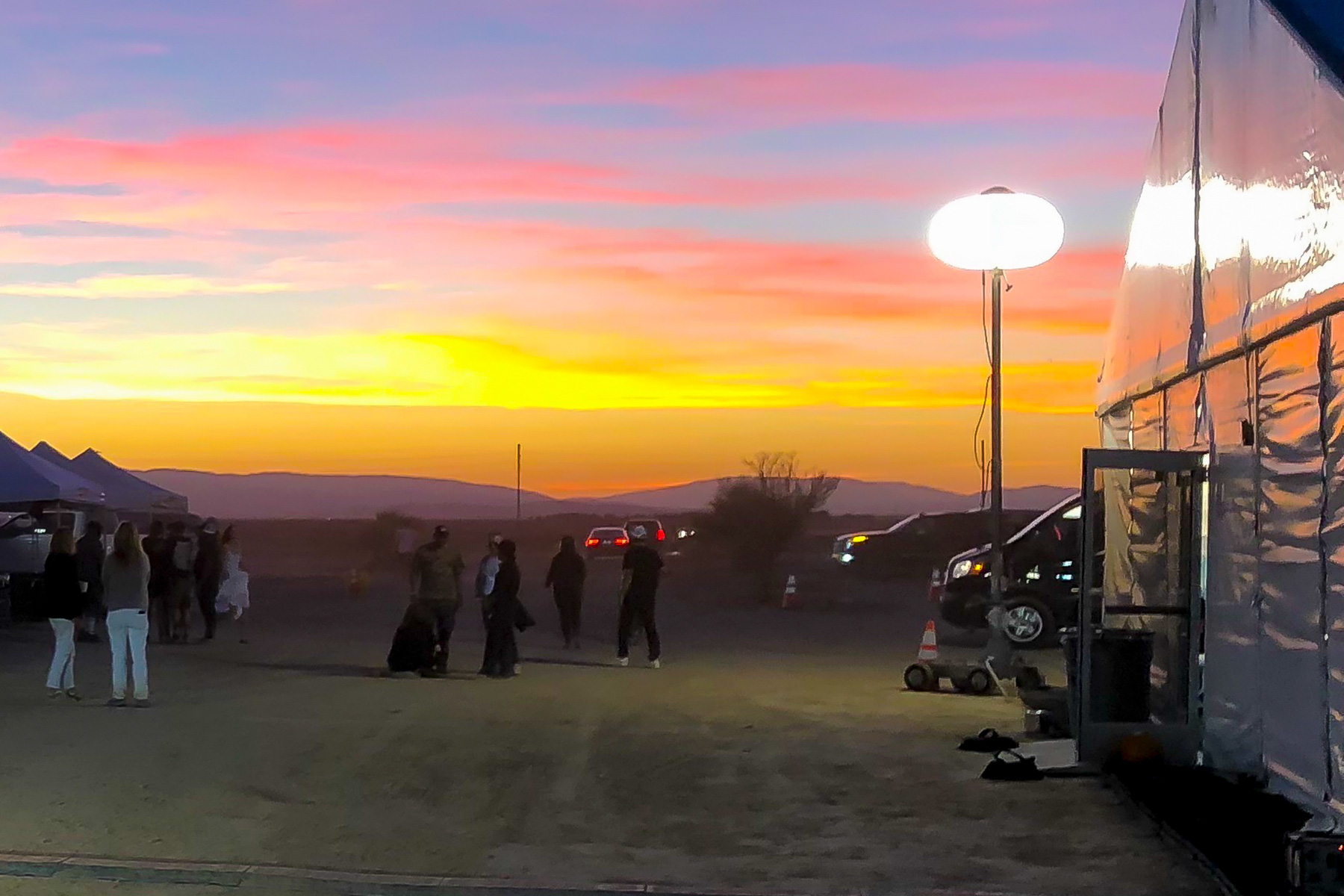

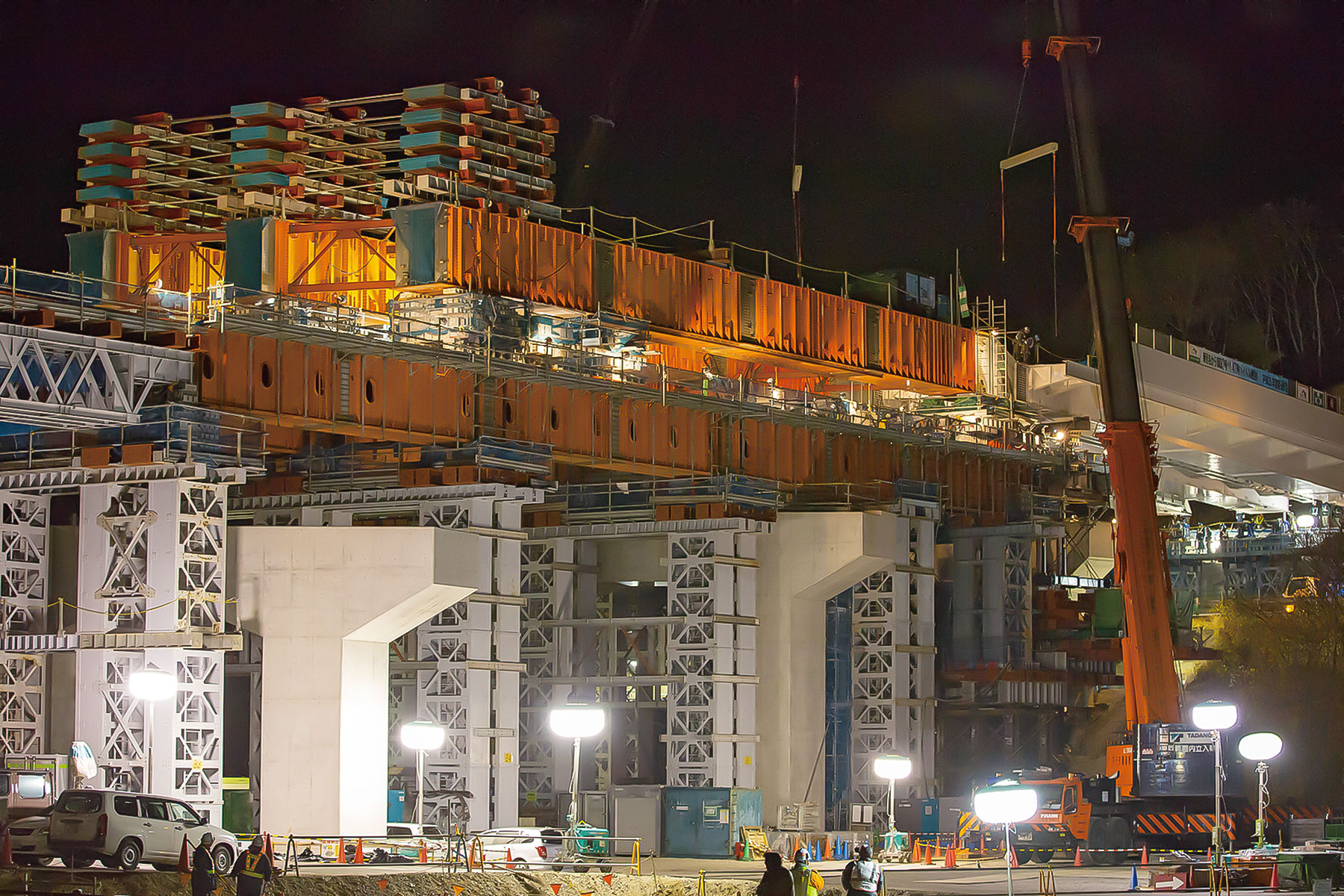

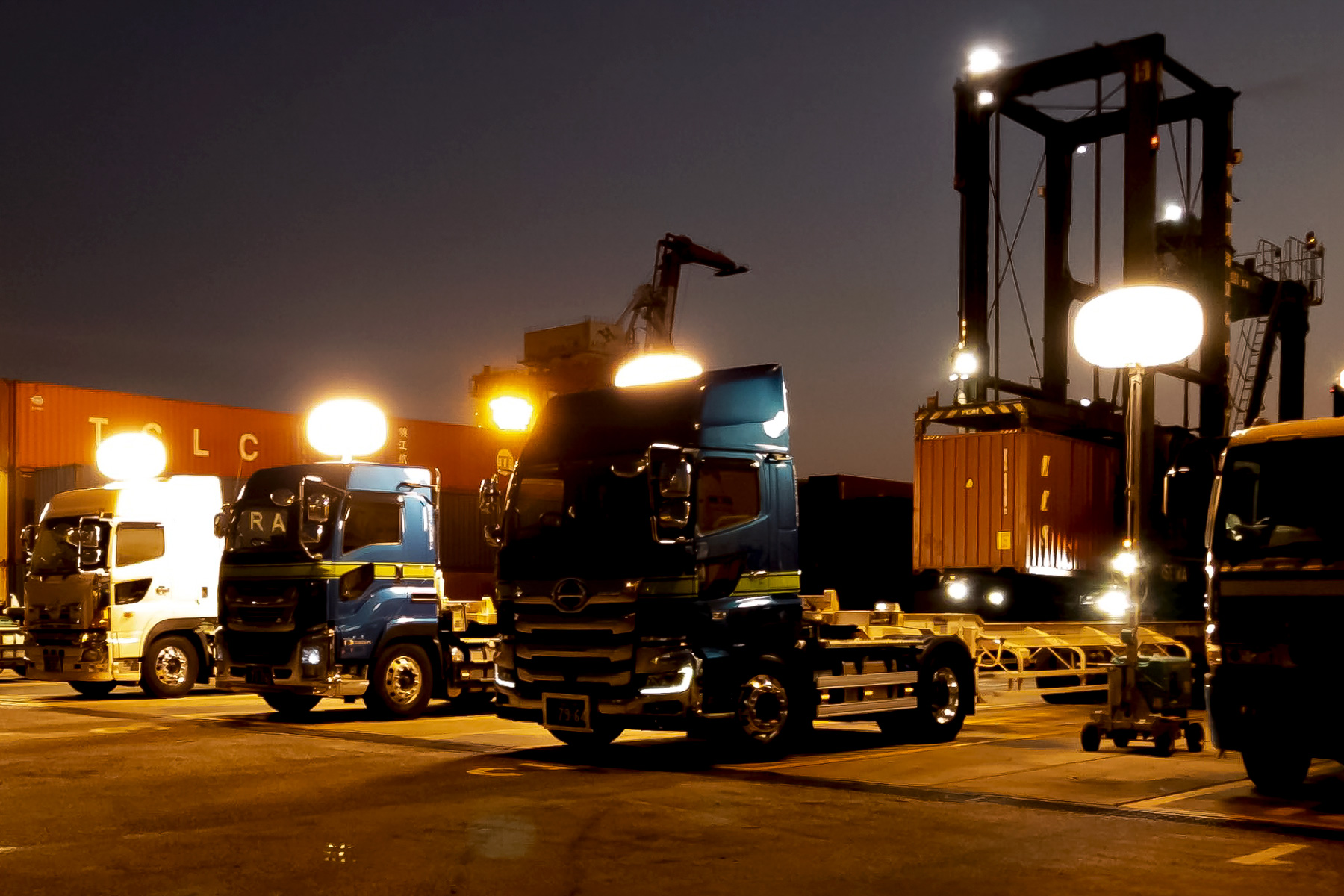

The B8CS-A-CE balloon lighting system is a powerful, portable solution designed to provide high-quality, even illumination. Its innovative balloon design diffuses light uniformly, reducing harsh shadows and glare—ideal for a range of applications from construction and events to emergency response. Compact and easy to transport, multiple units can be loaded into smaller vehicles, making it incredibly versatile for professionals. Paired with custom mounting brackets for seamless compatibility with HONDA EU30iS generators. When superior lighting performance in a compact, portable package is required, the B8CS-A-CE delivers unmatched efficiency and convenience.

Download User Manual

SPECIFICATION

ModelB8CS-A-CE
Voltage (V)AC230
Frequency (Hz)50/60
Wattage (W)860
LampTypeLED 800W x 1
Dimming Control800W/600W/400W
Total Luminous Flux (lm) 110 000 / 90 000 / 67 000
Temperature (℃)-10~40
MastMast Type3-stage telescopic Mast
Mast OperatingHand Operation
CartTireOuter diameter 300mm pneumatic tires x 4
Tire pressure (kPa)245 - 294 (2.5 - 3.0kgf/cm2
)
BrakeOne-step foot brake
OutriggerRear drawer type x 2

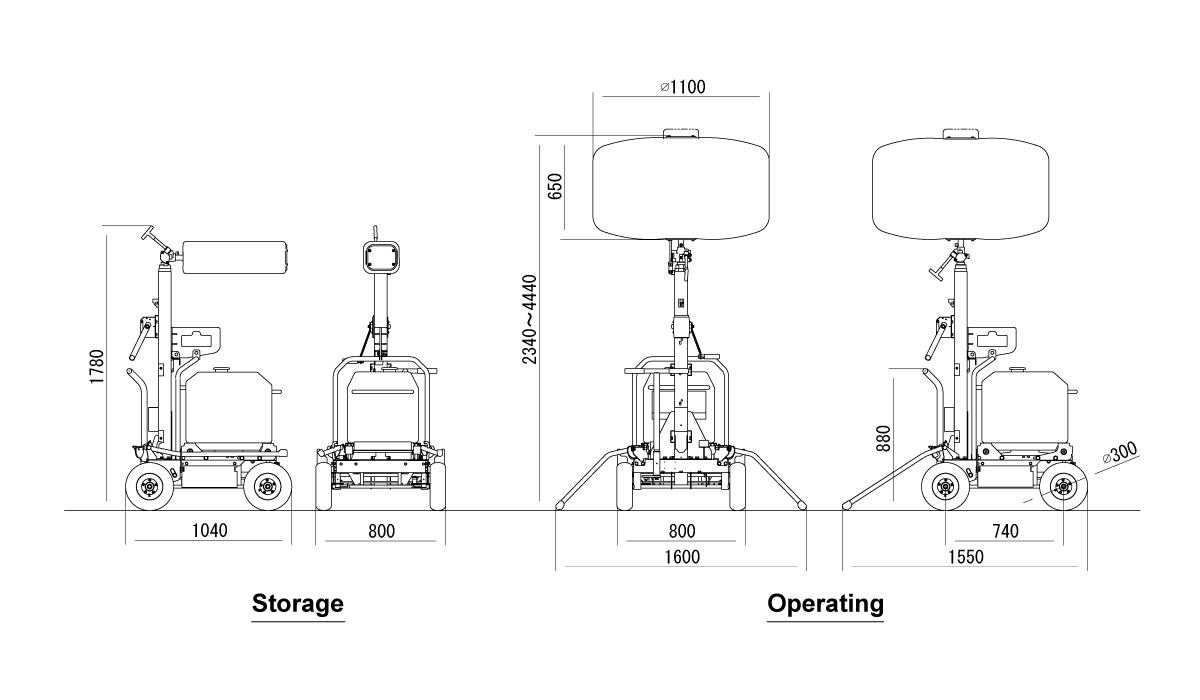

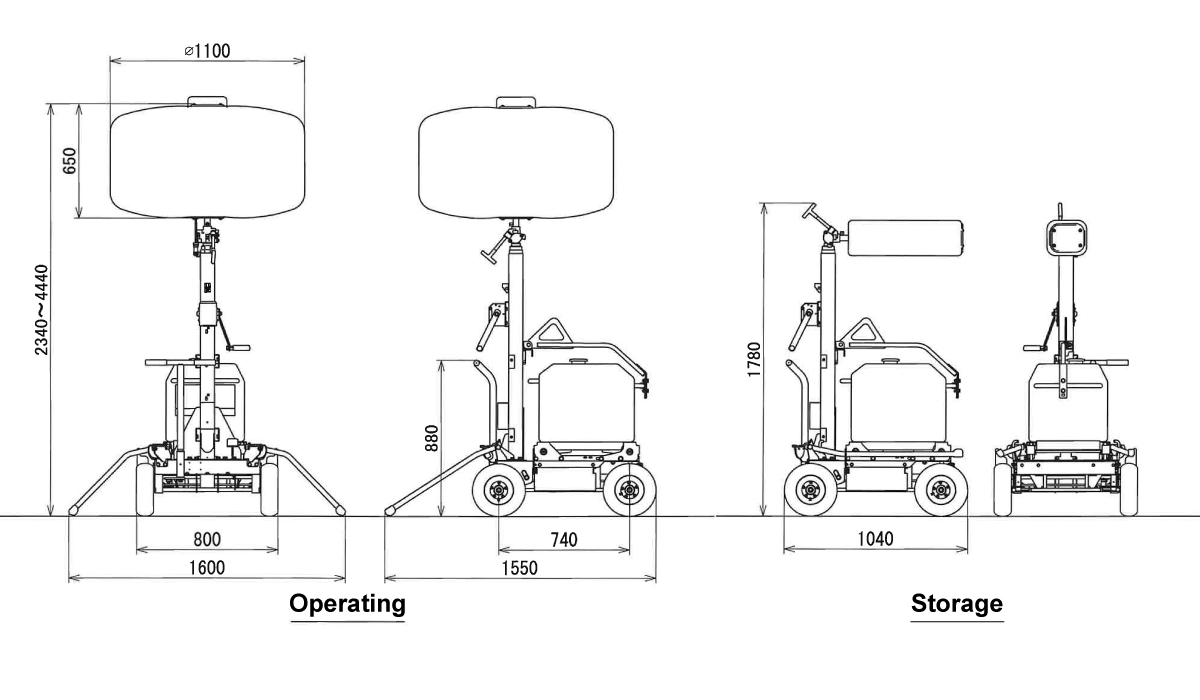

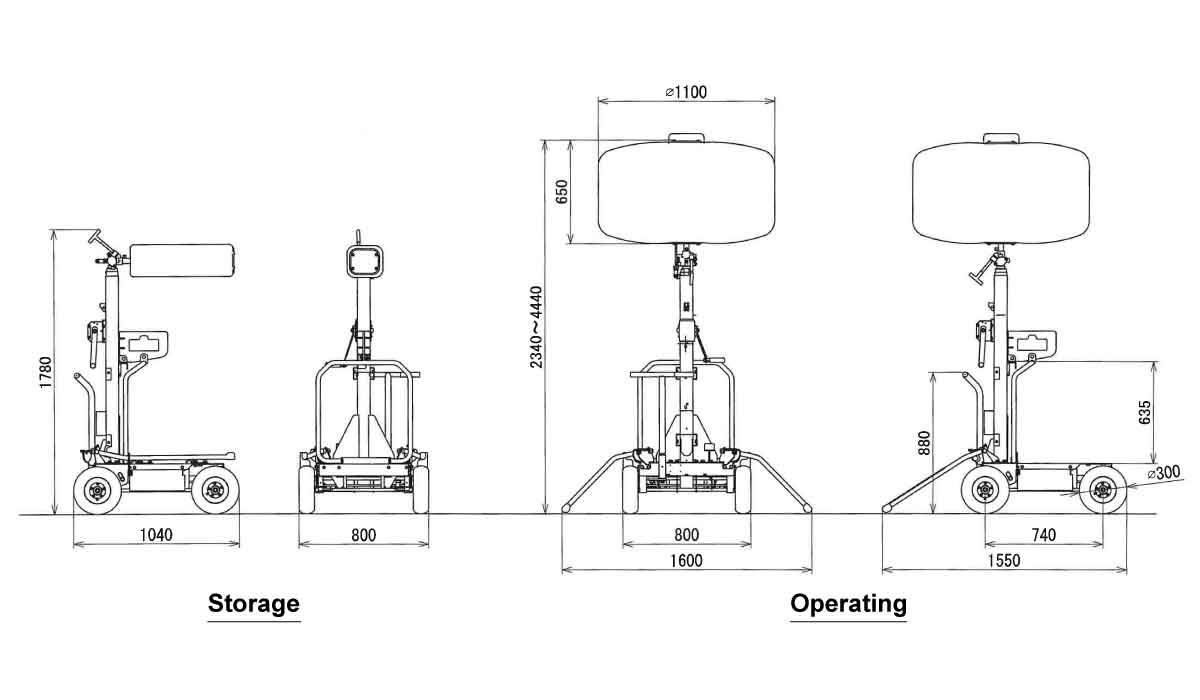

DimensionOperating (LxWxH) (mm)1550x1600x2340-4440
Storage (LxWxH) (mm)Balloon 1040x800x1780
Plug typeCEE7/7
Total Weight(kg)116
Appropriate GeneratorOutput 0.9kVA or more

Notice: Features and equipment specifications are subject to change without notice.

Improve your SAFETY

What is Balloon Light?

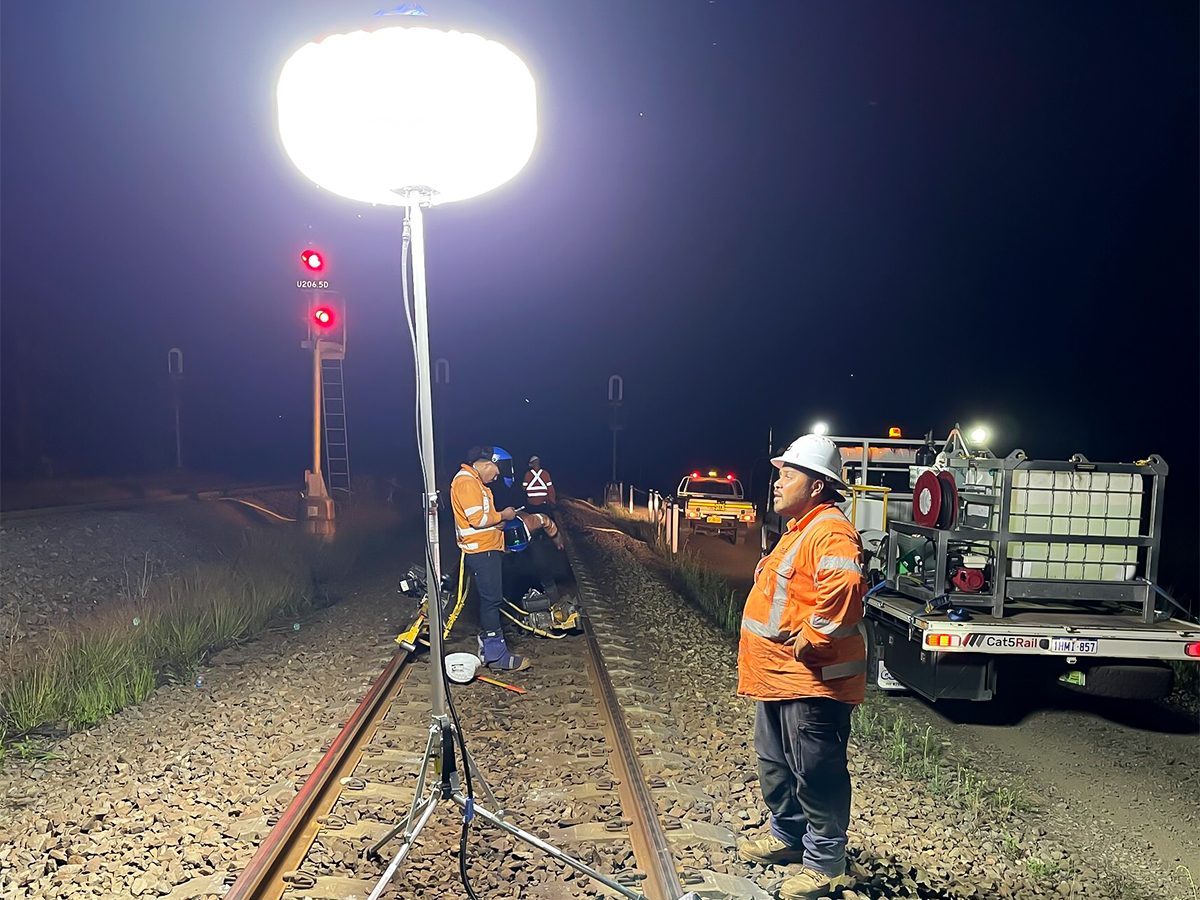

Soft, Glare-Free Illumination

The balloon floodlight utilizes a translucent fabric cover to diffuse light, creating a soft and evenly distributed illumination. This reduces glare, ensuring a comfortable working environment while maintaining safety for both workers and passing drivers.

360° Omnidirectional Lighting

Unlike conventional directional floodlights, the balloon floodlight emits light uniformly in all directions, providing consistent and widespread illumination across the entire worksite with a single unit.

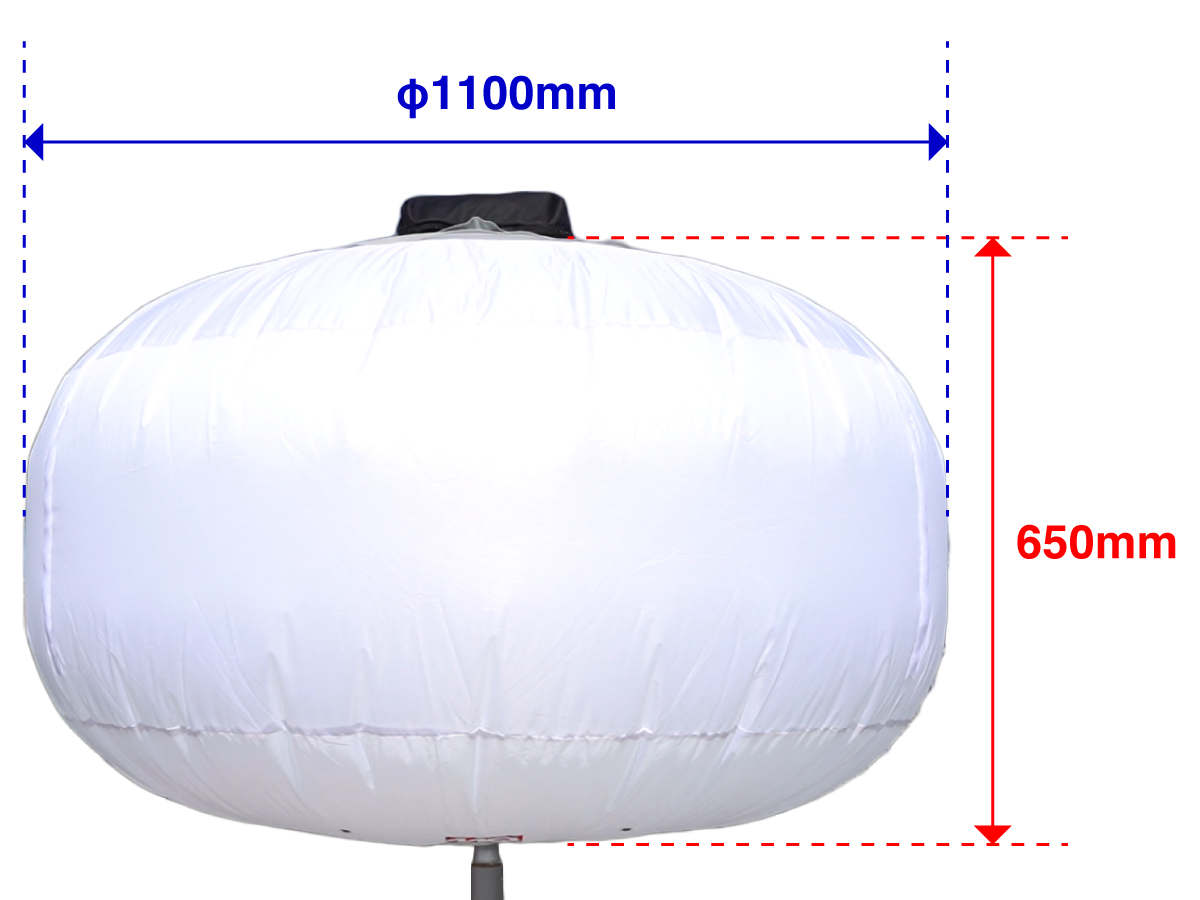

Enhanced Visibility for Increased Safety

The large, illuminated balloon serves as a highly visible marker, making the worksite easily identifiable from a distance. This helps prevent secondary accidents by alerting surrounding vehicles and pedestrians to ongoing operations.

Safety Features

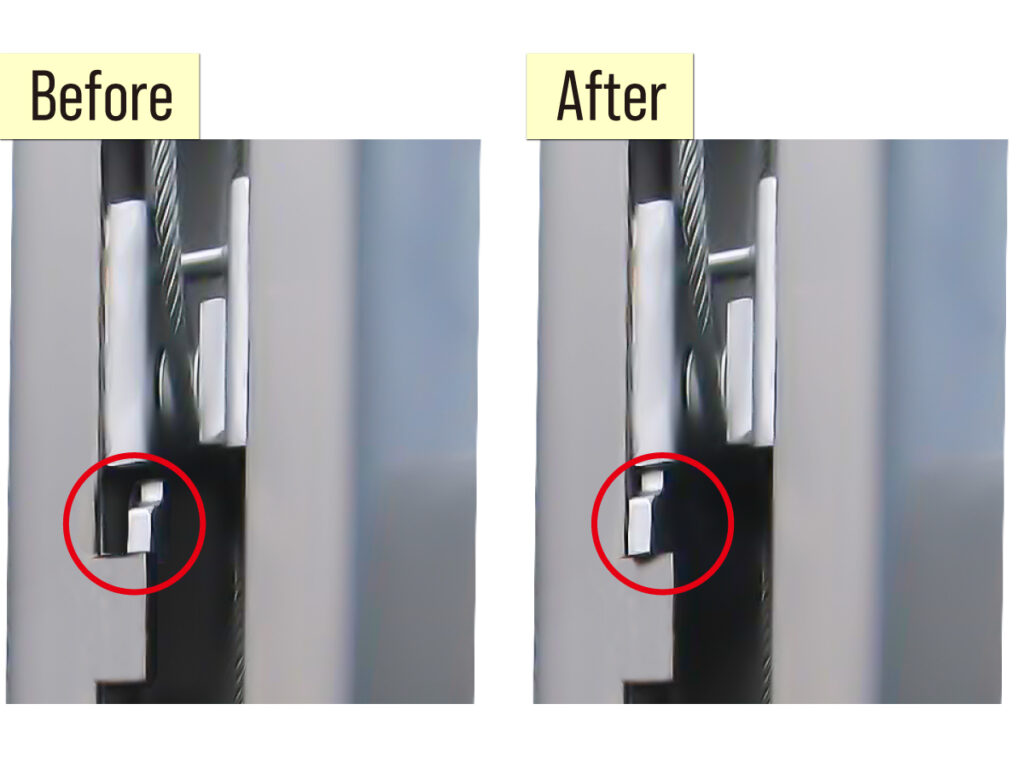

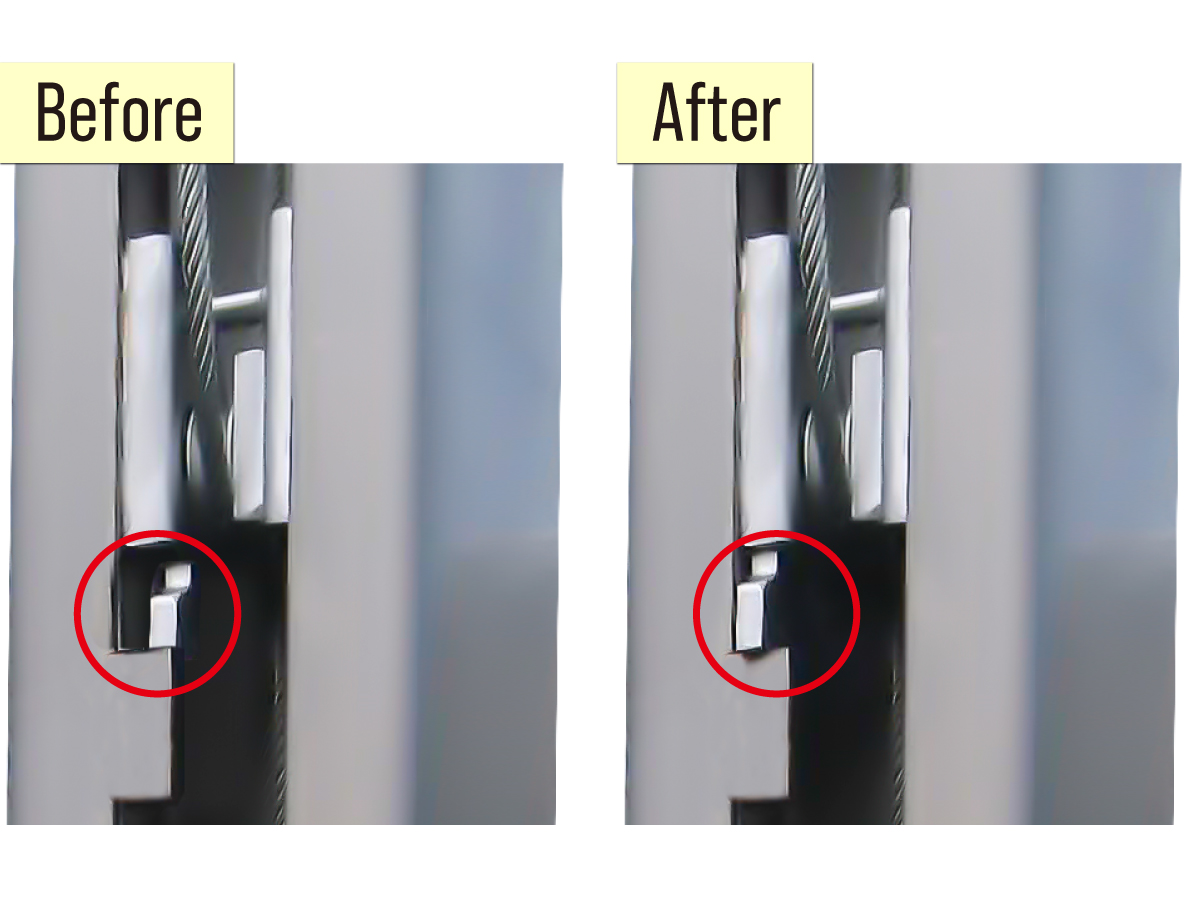

Mast Drop Prevention Mechanism

In the unlikely event of an internal wire failure, the integrated safety stopper automatically engages to prevent the mast from collapsing, ensuring the safety of workers and surrounding equipment.

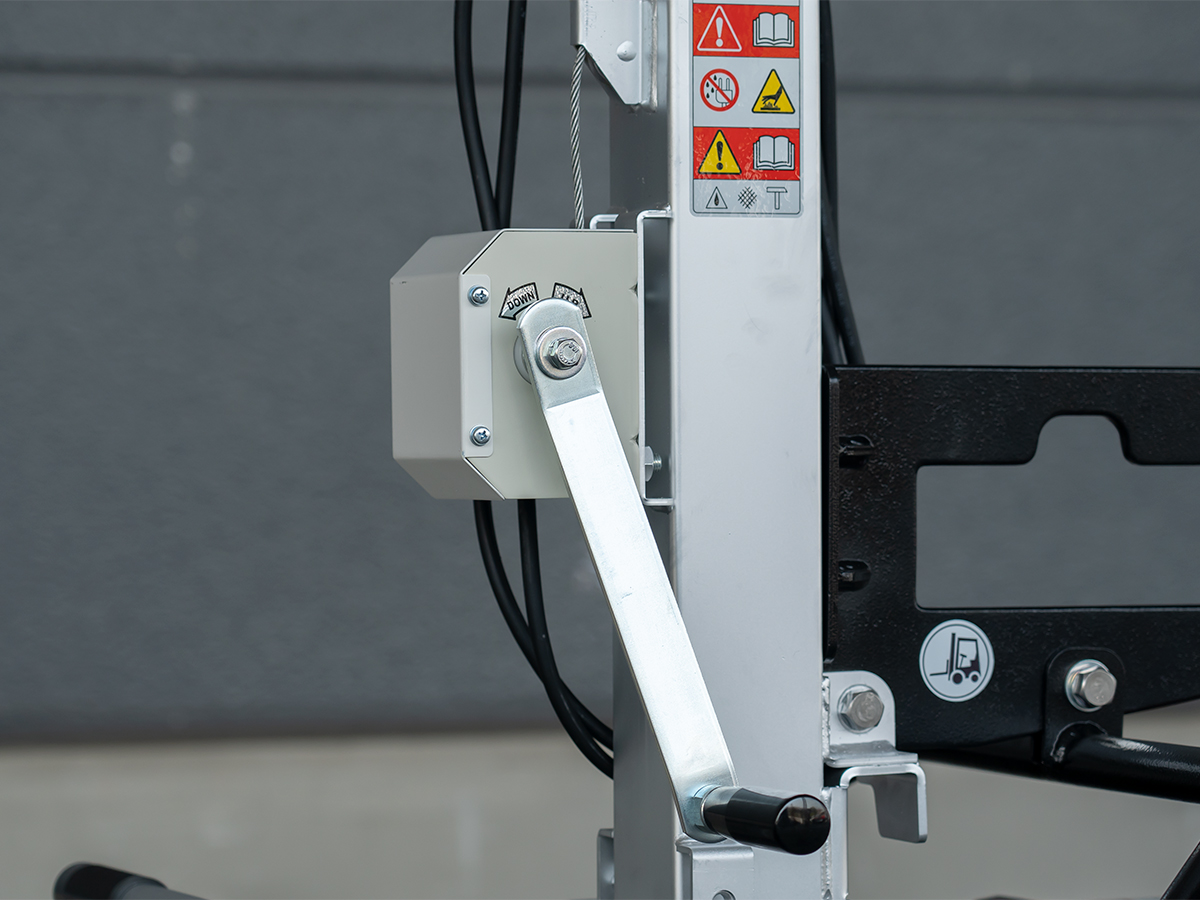

Reverse Winding Prevention Winch

Equipped with an innovative reverse winding prevention mechanism, the winch will not raise the mast if the handle is turned in the wrong direction. Without this feature, incorrect winding could lead to brake failure, causing the mast to drop suddenly and posing a significant safety risk.

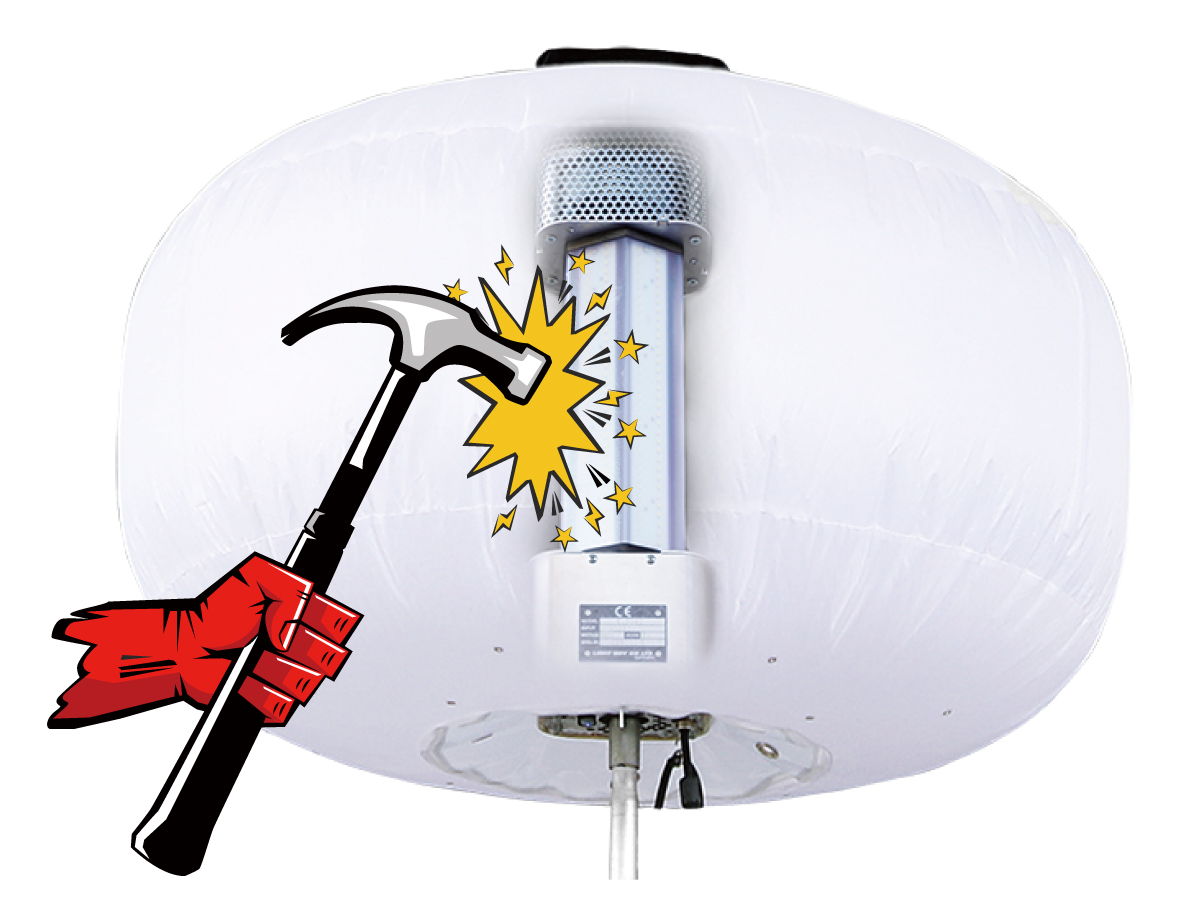

Durable Polycarbonate Cover

A high-strength polycarbonate cover protects the LED unit from impact and water ingress, enhancing durability and ensuring long-term reliability in harsh environments.

Exceptional Operability

Reverse Handle Steering Mechanism

The front-wheel reverse handle system optimizes maneuverability, enabling efficient movement even when transporting heavy equipment. Turning the handle to the right moves the unit to the left, and vice versa, allowing for precise control in confined spaces.

One-Touch Outrigger System

The automatic locking outrigger securely stabilizes the unit upon deployment and can be easily disengaged with a single touch, streamlining setup and takedown procedures.

Dual Rear-Wheel Brake System

A foot-operated parking brake securely locks both rear wheels, preventing unintended movement and enhancing stability on uneven terrain.

Optimized for Convenience

Integrated Balloon Cover

The built-in storage cover folds neatly into the top of the balloon, eliminating the risk of loss. Additionally, an internal pocket provides a designated space for storing power cables.

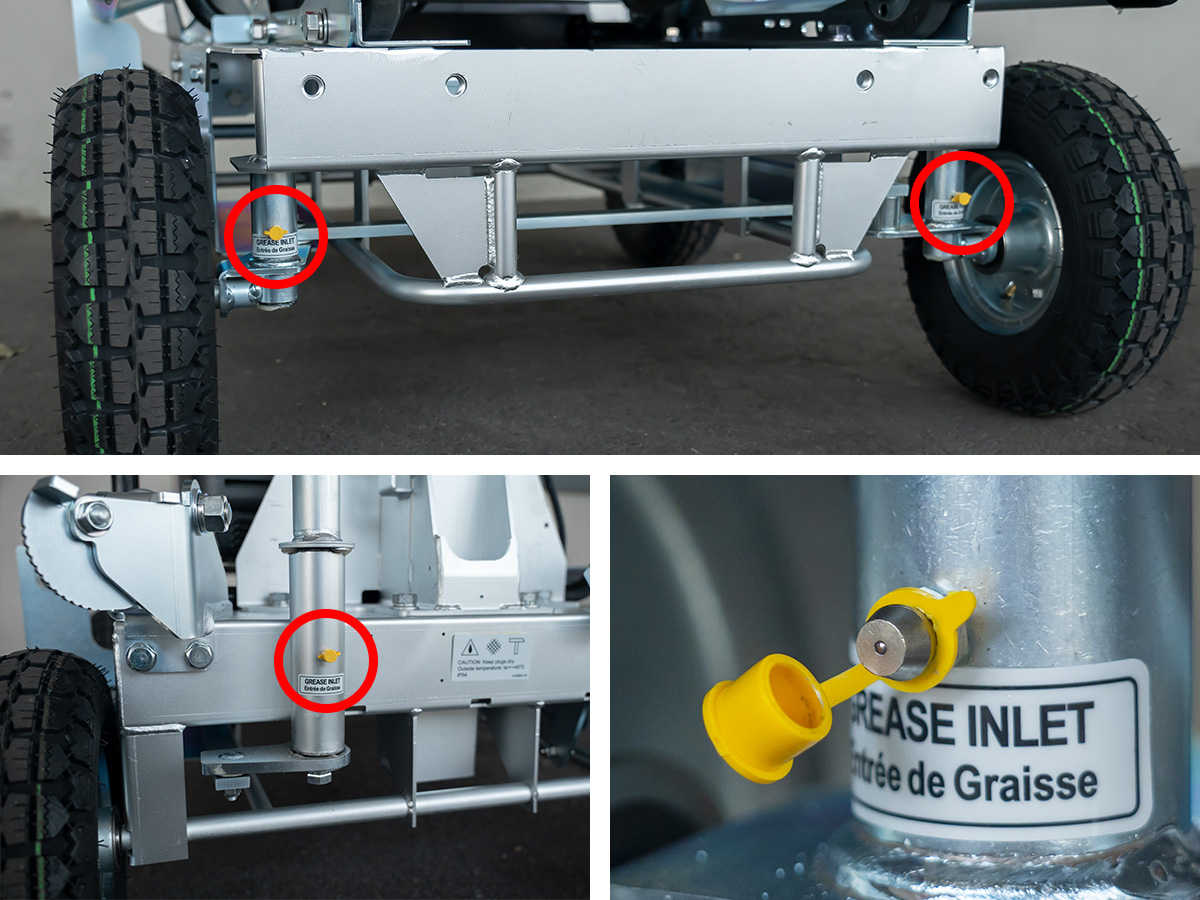

Easy Maintenance with Grease Nipples

Strategically placed grease nipples at the wheel axle and handle base allow for quick and hassle-free lubrication, ensuring smooth operation and extending the lifespan of key components.

Forklift-Compatible Design

Designed for efficient transportation, the unit can be lifted from two sides using a forklift. The pocket also functions as a lifting eye, allowing for faster and more flexible loading and unloading compared to crane-based handling.

Option

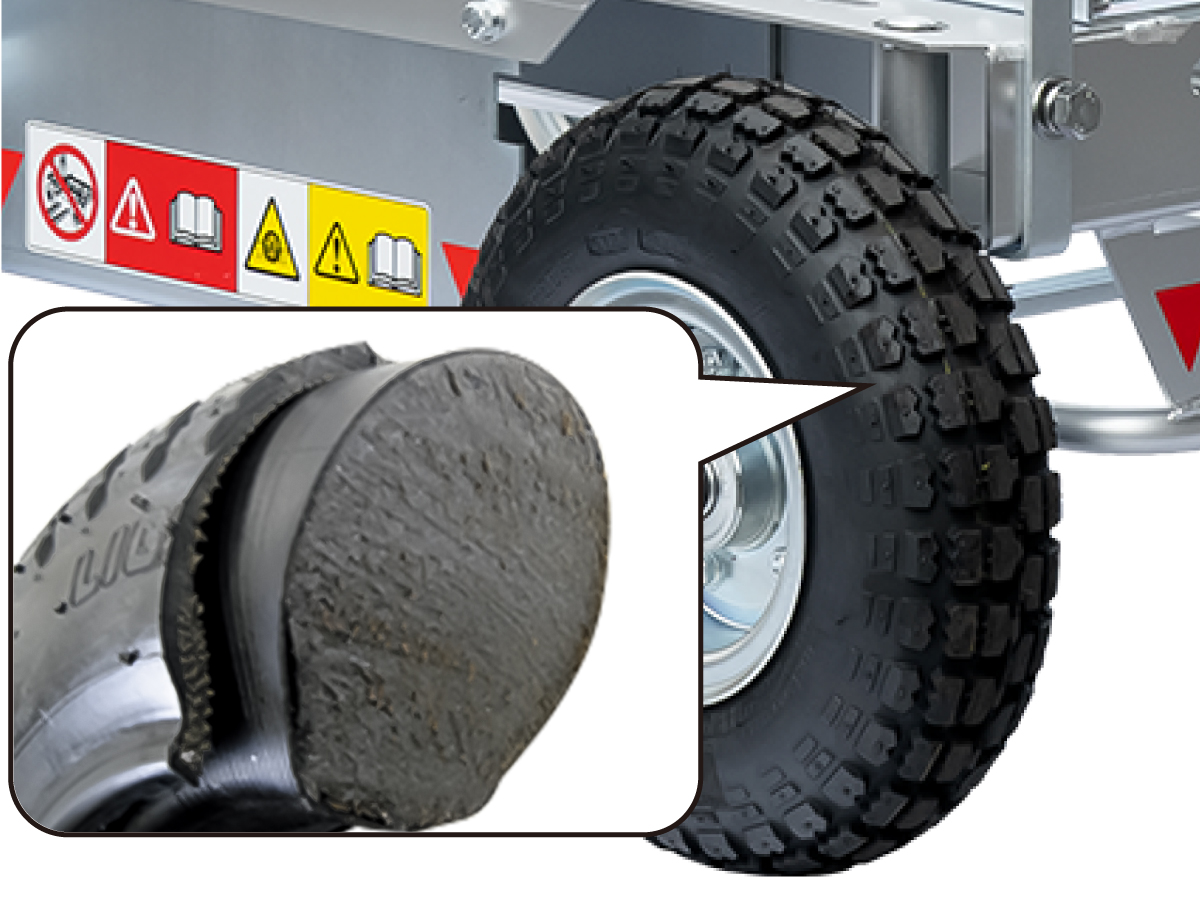

No Puncture Tire

Airless tyres without punctures.

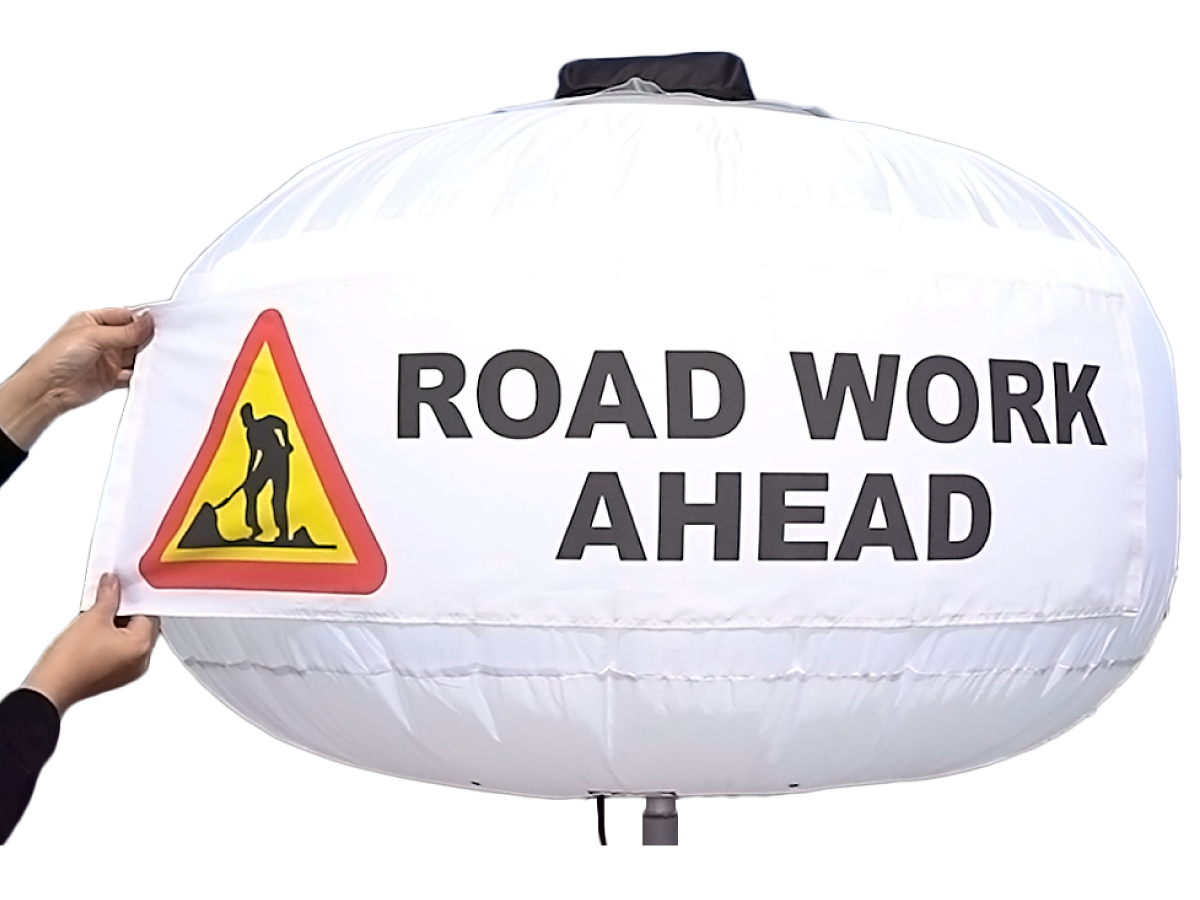

Message Strip

Message Strips fit on both sides of the balloon.
Easy attach and replace with VELCRO

Design Balloon

We offer Humor and Comfort to nighttime construction.
