B3Q3S
Height: 3.3m
Floodlights: 300W LED Balloon
Mast: Telescopic Aluminum Mast

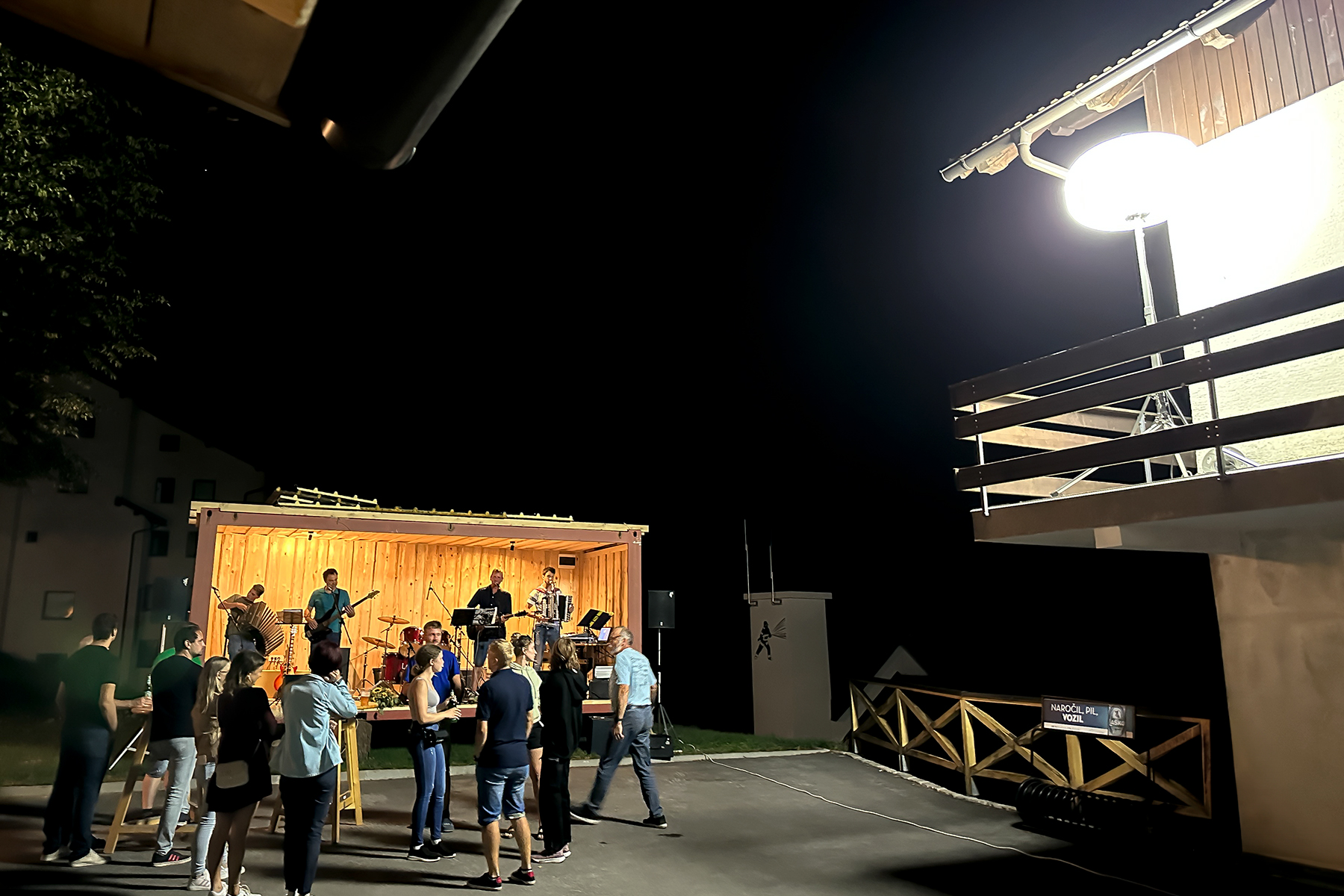

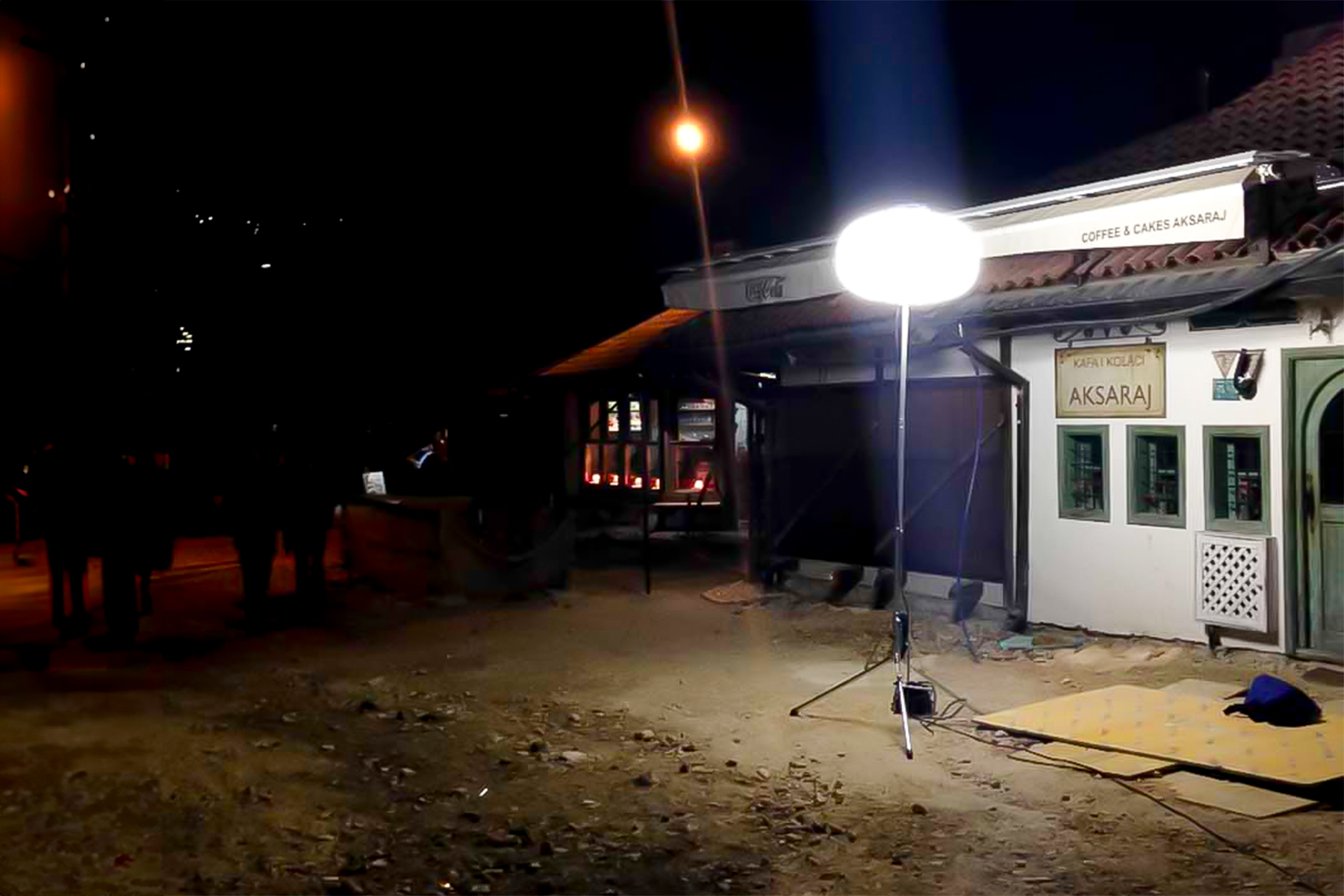

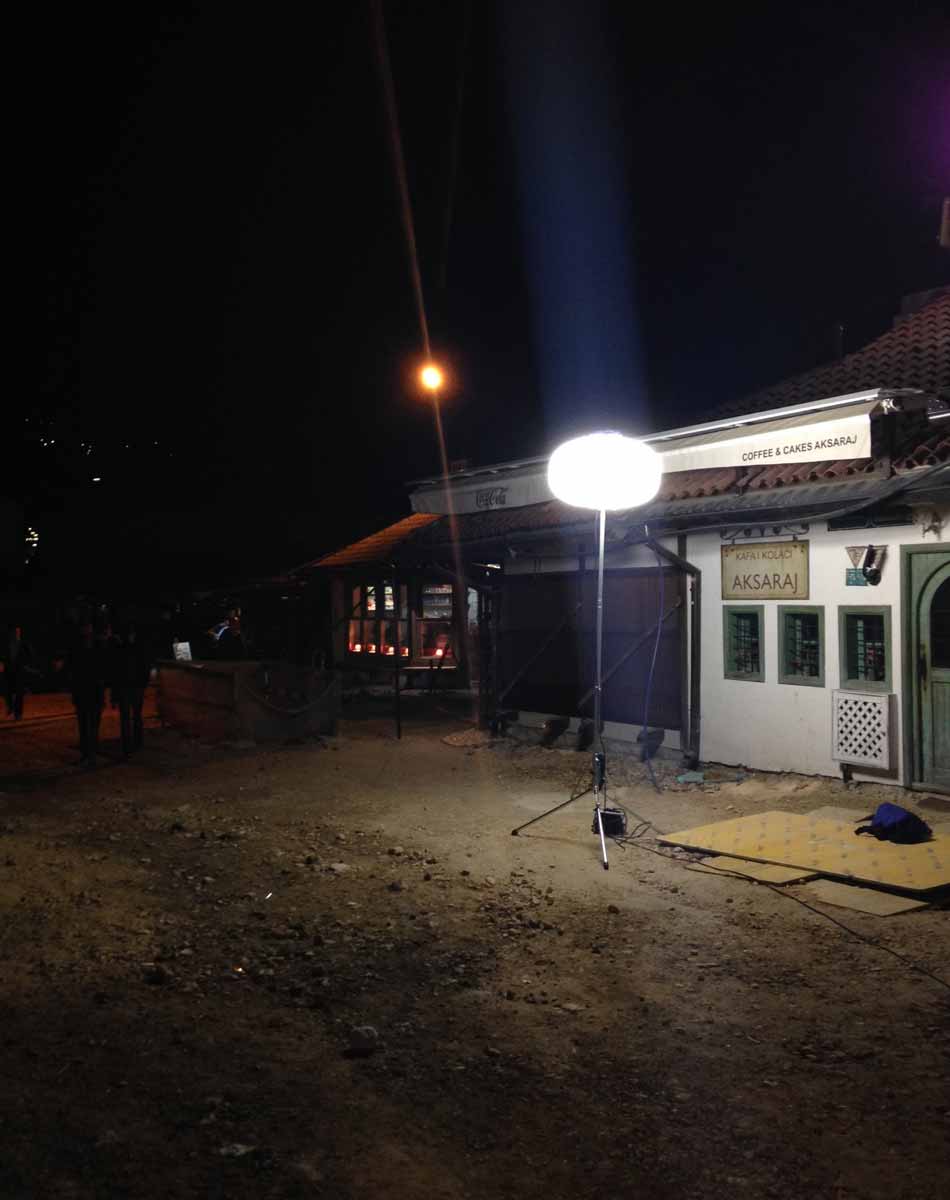

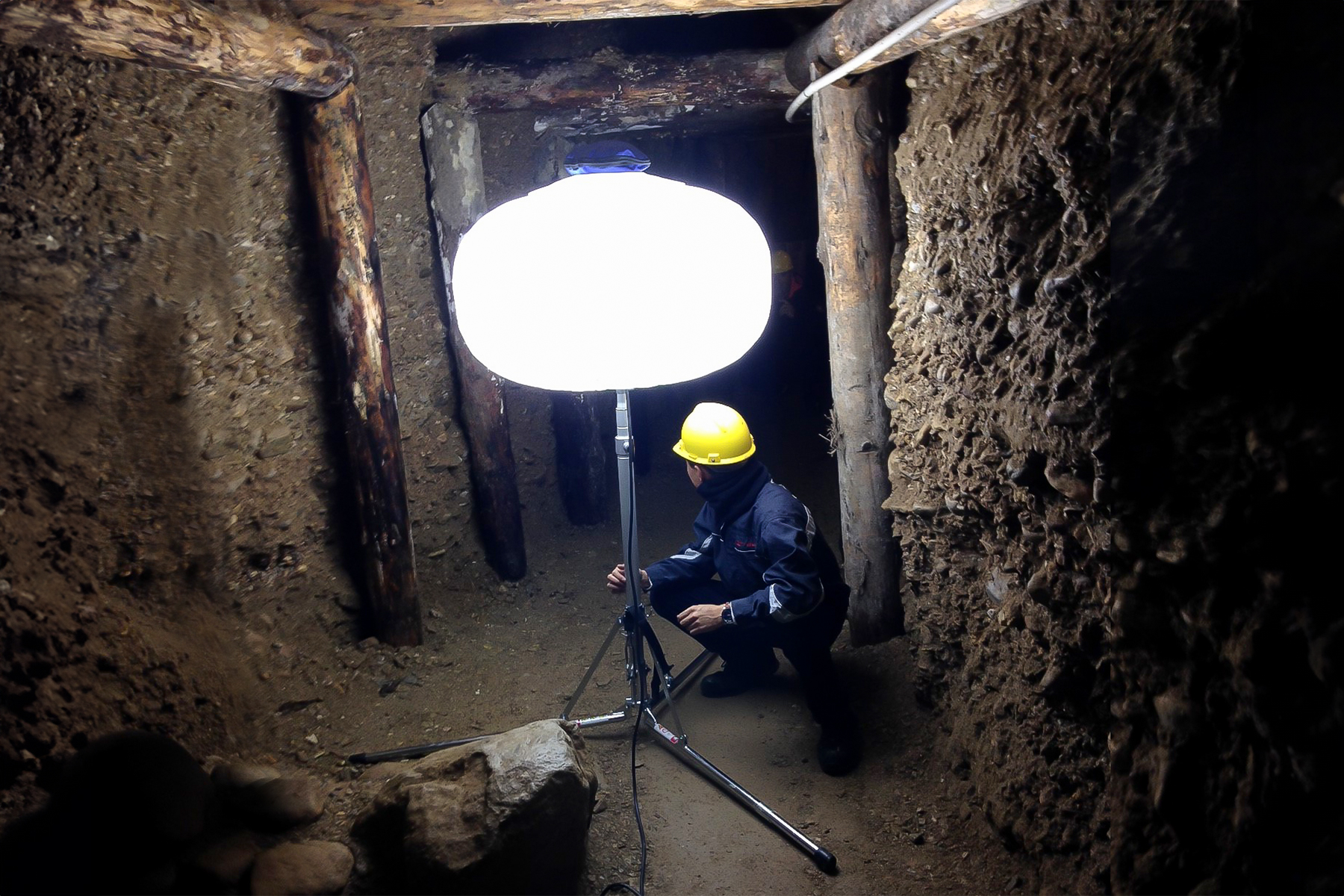

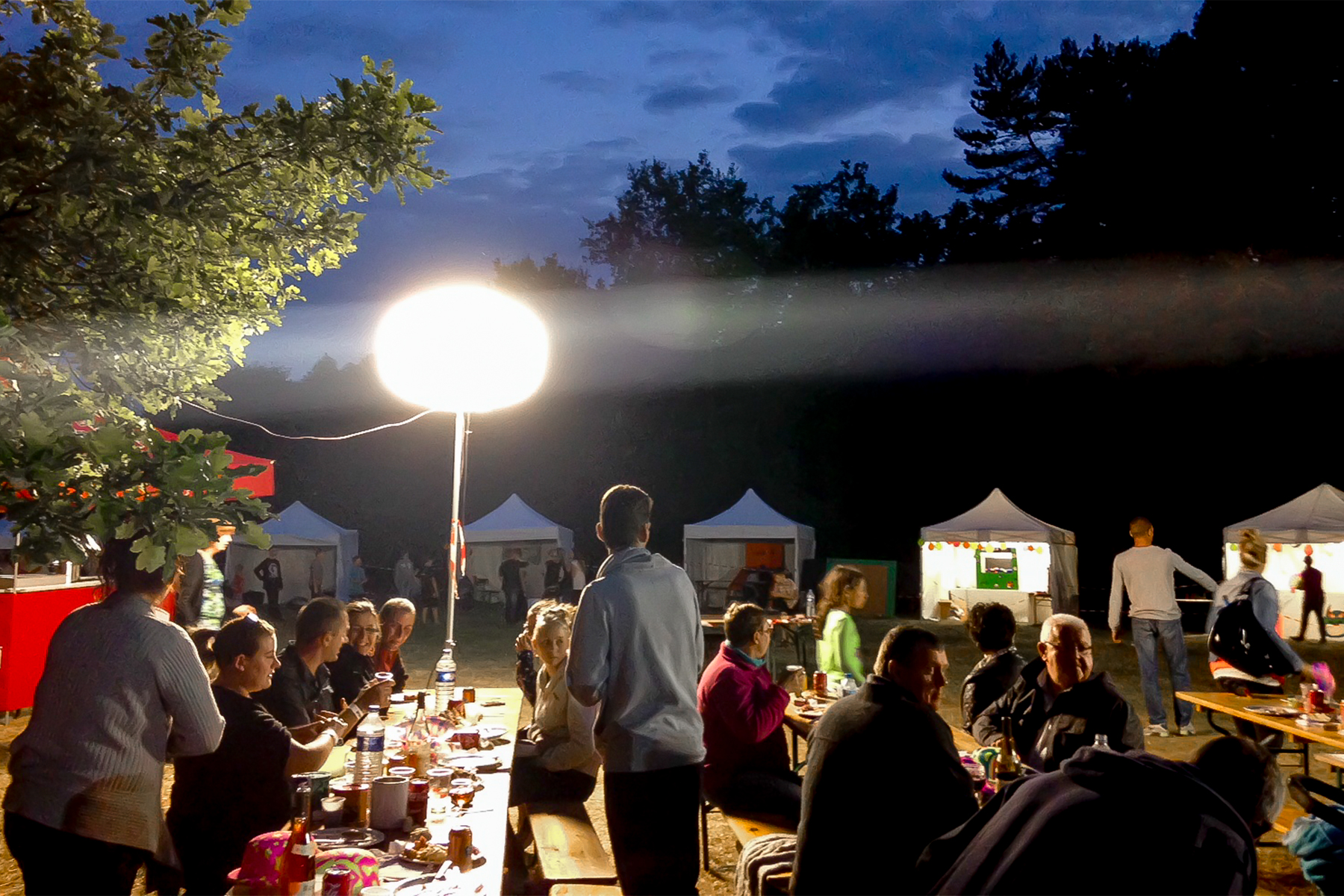

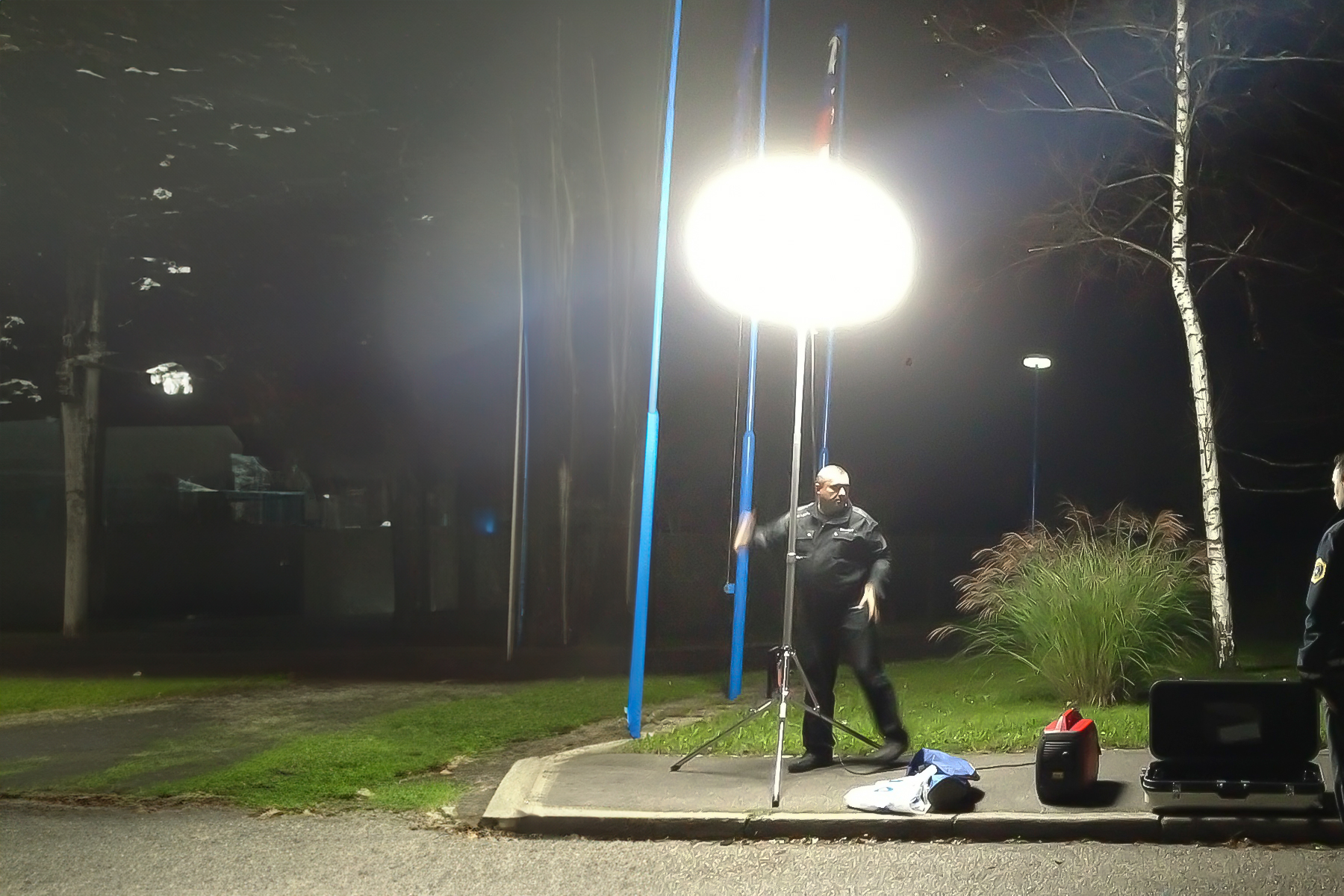

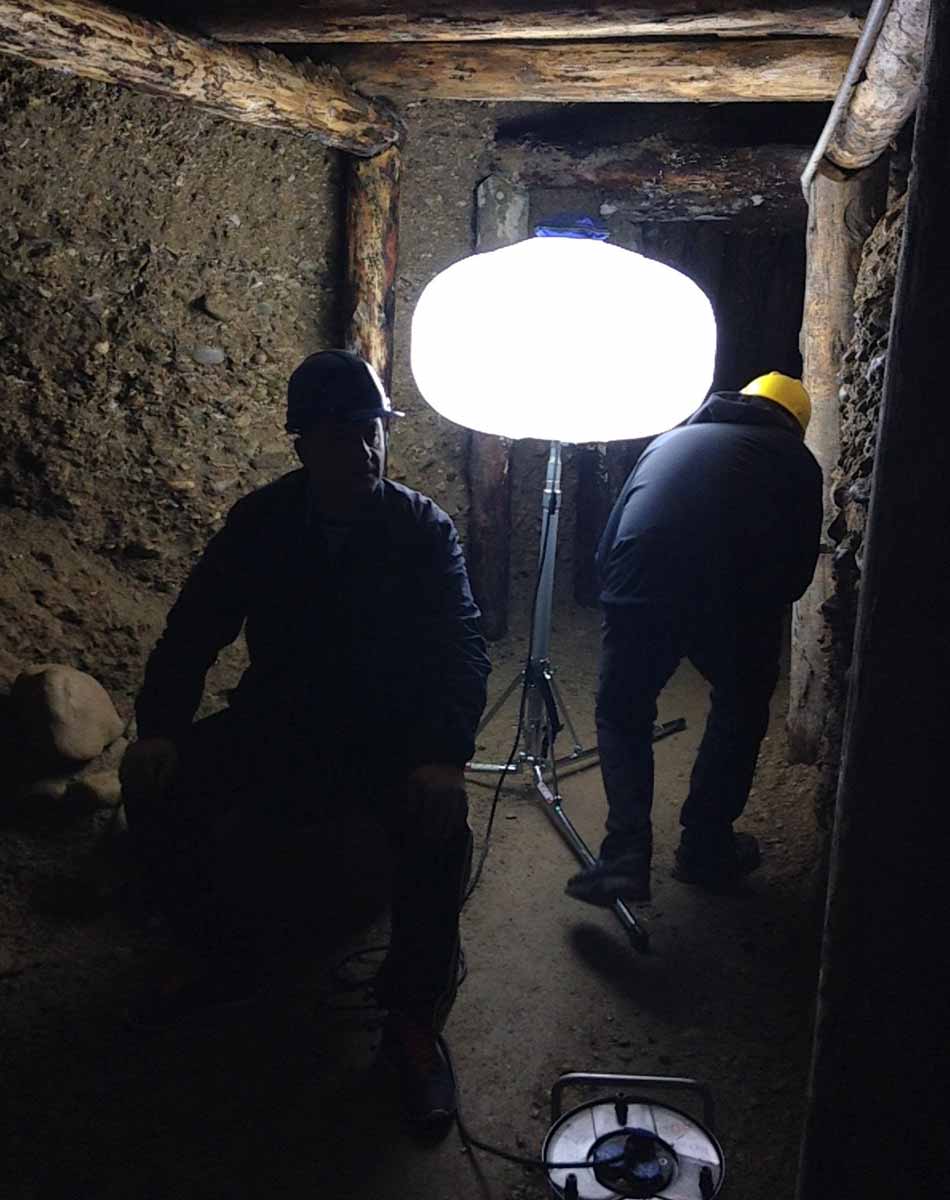

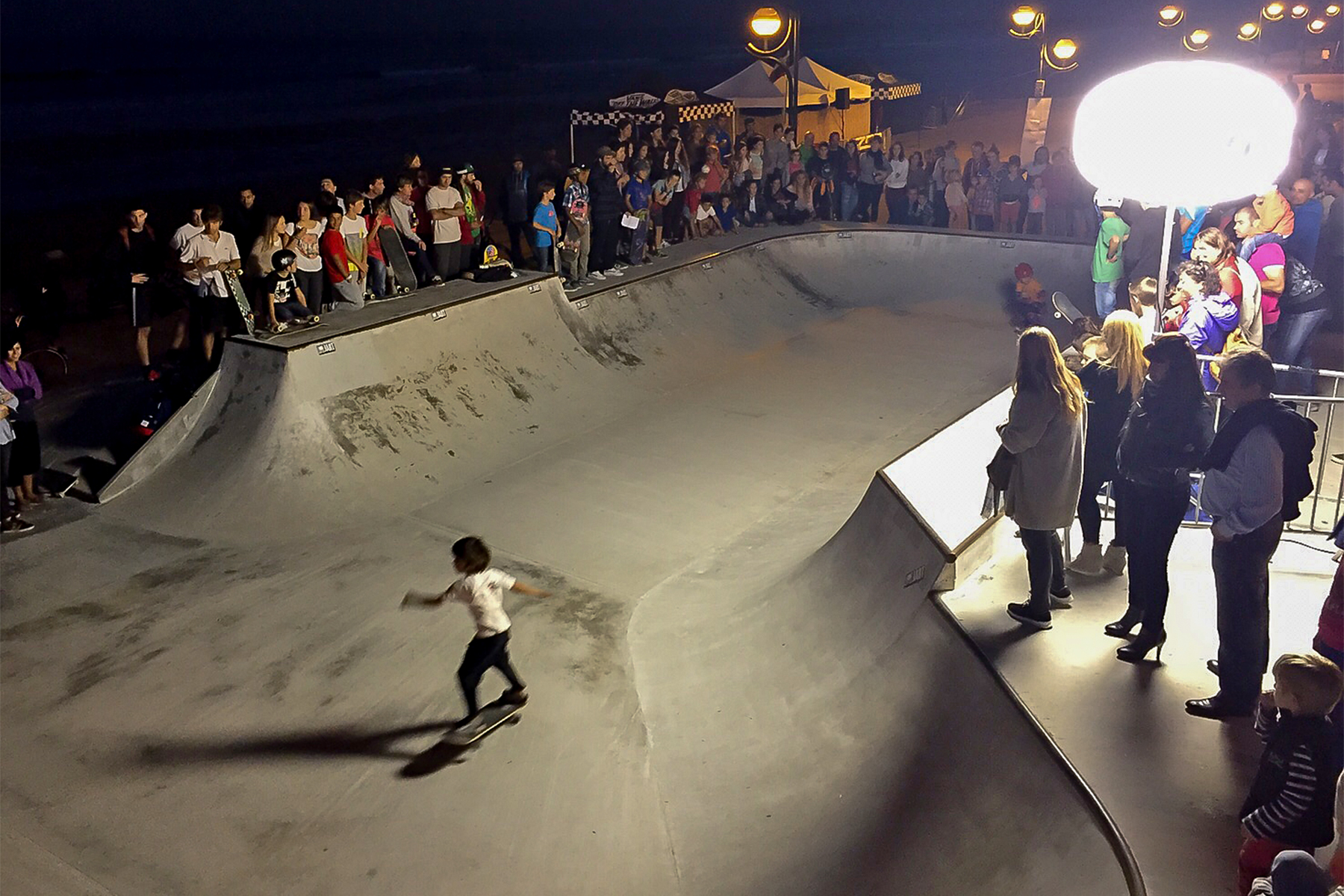

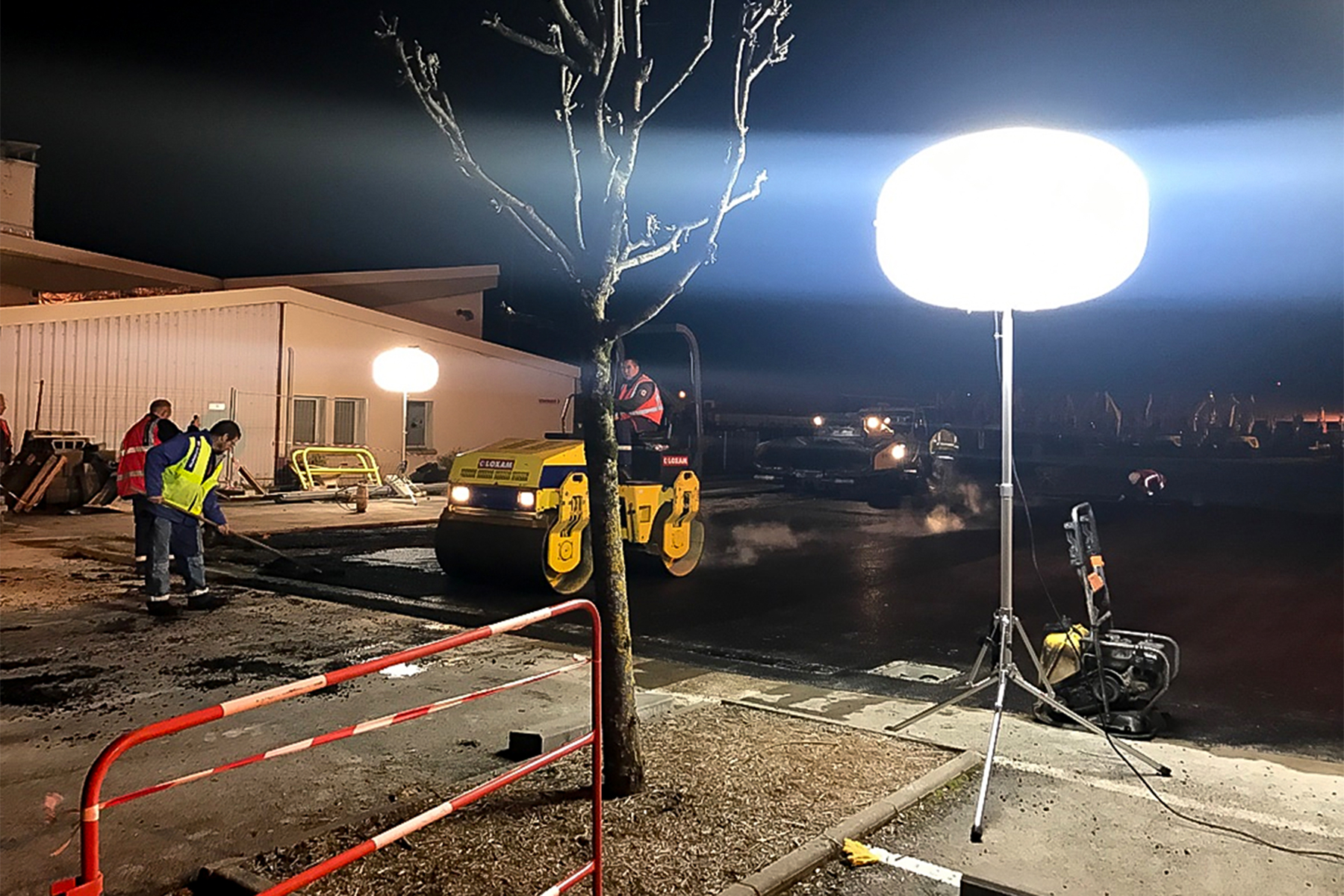

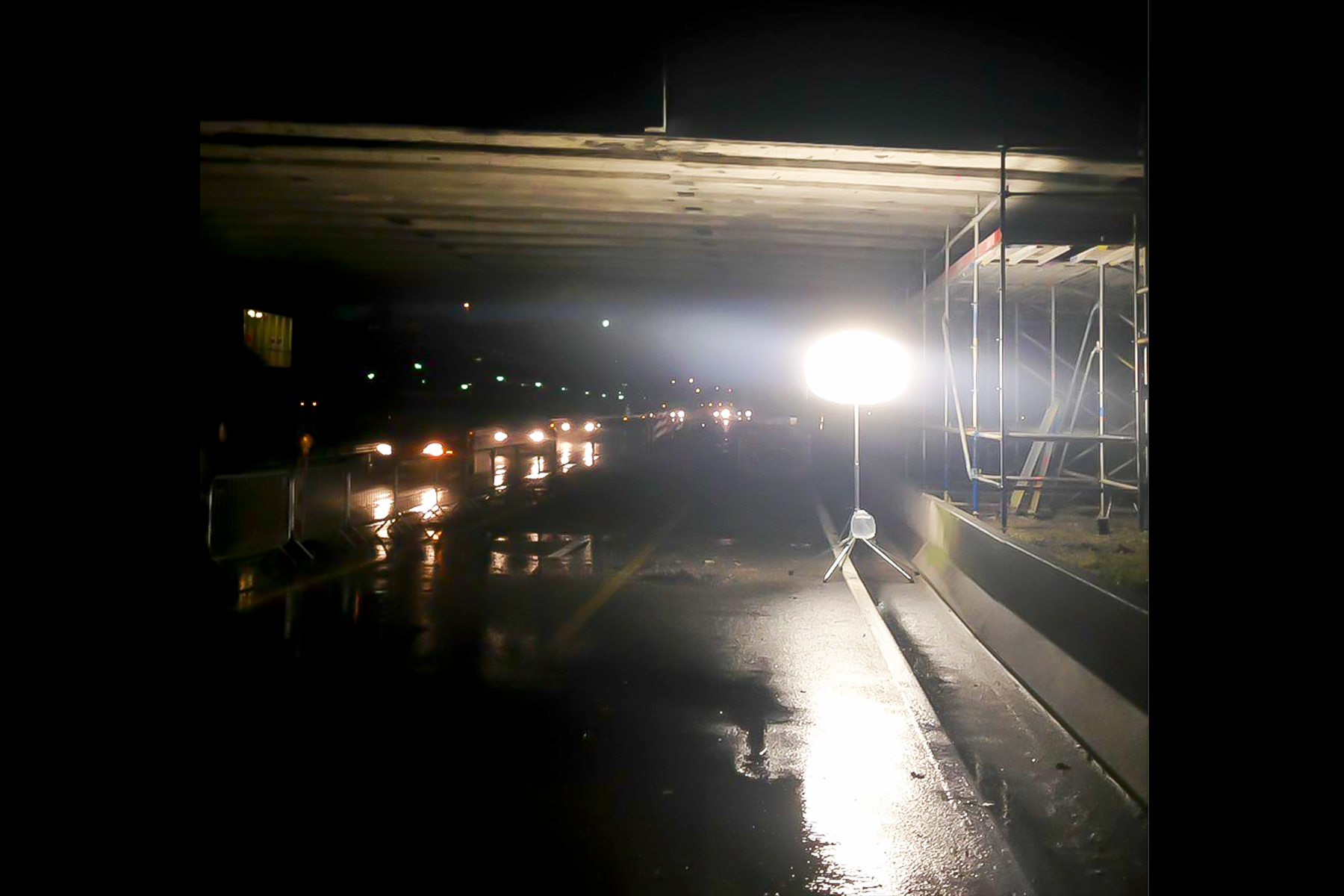

LIGHT BOY offers exceptional LED technology to our line. LED lighting is safer, producing significantly less heat than Metal Halide bulbs while offering quality colour consistency, immediate strike/re-strike operations, and a long operational life. The B3Q3S comes with an air-shock absorb 2 stage mast and a quick stand. With its 300W LED system, and 3-position dimmer design, this unit provides optimum glare-free lighting to a host of construction, quick response, and special event applications.

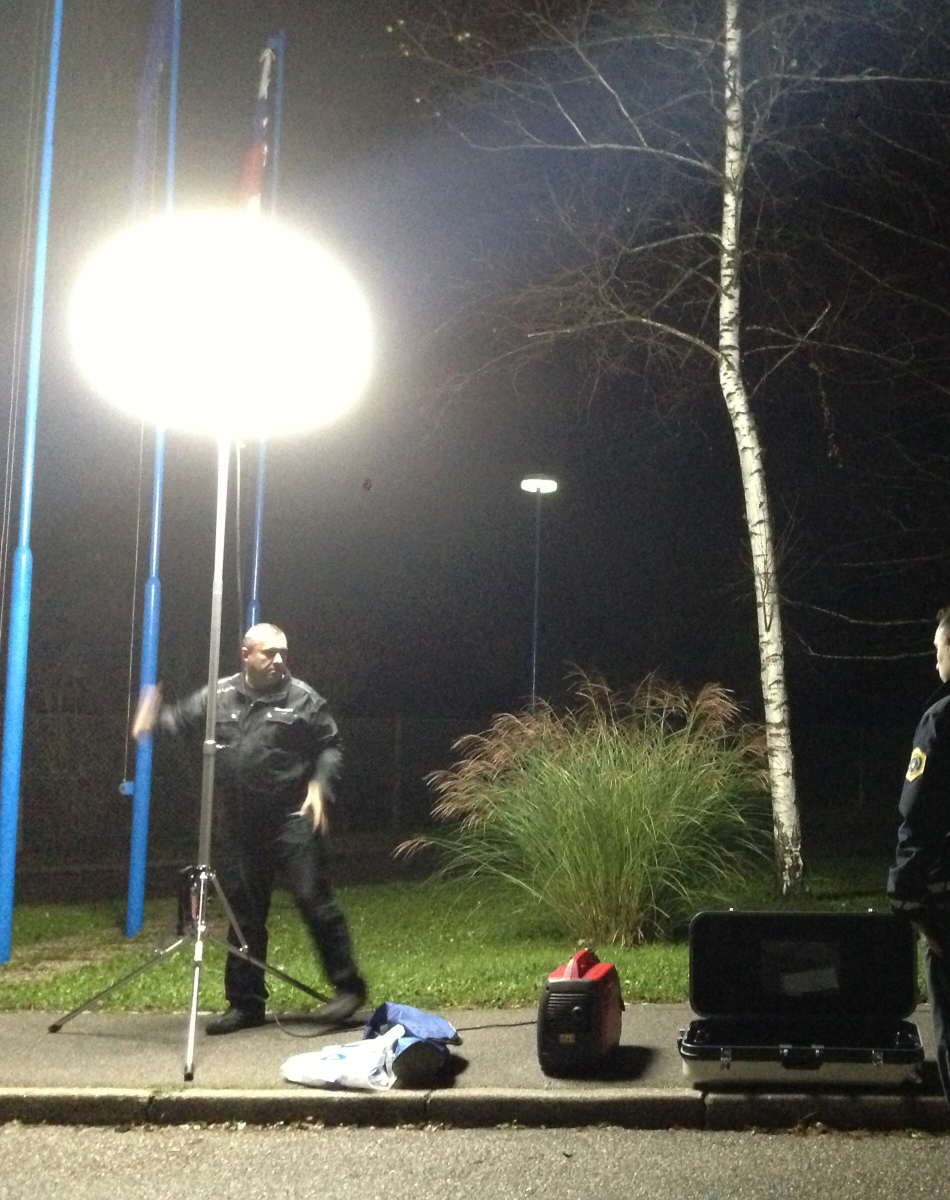

The unit sets up in minutes, and is easily transported in soft carrying cases.
LIGHT BOY LED LIGHTING SYSTEM
Quick deployment stand
3 legs are deployed by operating one lever. Easy and very simple set-up and stow.
Gas Shock Absorbers Mast
The mast is equipped with a gas-assist lowering system. This system allows the mast to be retracted slowly when released.
Compact and Light weight
The entire lighting system can be carried around easily in two carrying cases.
Integrated protective cover
The protective cover can be folded and stored on the top of the balloon assembly during operations.
LED Lamp Guard
LED lamp guard is made of polycarbonate with a level of durability the same as a riot shield.
Three Stage Dimming Control
The dimming control allows changing the light output. Select appropriate brightness depending on applications. 300W / 200W / 100W / OFF
Specification
| Model | B3Q3S-CE | ||
| Voltage (V) | AC90~240 | ||
| Frequency (Hz) | 50/60 | ||
| Current (A) | 1.4 (AC230V, 300W) | ||
| Lamp | Type | LED | |
| Dimming Control | 3 Stages : 300W/200W/100W | ||
| Total Luminous Flux (lm) | 40,000/30,000/16,000 | ||
| Temperature (℃) | -10~40 | ||
| Mast | Mast | Telescopic Aluminum Mast | |
| Mast Operating | Hand Operation | ||
| Dimension | 1st Level (L×W×H) (mm) | 1330×1575×1620~2950 | |
| 2nd Level (L×W×H) (mm) | 1135×1325×2005~3335 | ||
| Storage (L×W×H) (mm) | Balloon | 200×220×600 | |
| Tripod | 190×190×1015 | ||
| Carry Case | 220×220×1120 | ||
| Weight | Balloon (kg) | 9.2 | |
| Tripod (kg) | 7.7 | ||
| Carry Case (kg) | 0.7 | ||
| Total Weight (kg) | 17.6 | ||
| Appropriate Generator | 350W and above | ||
Notice: Features and equipment specifications are subject to change without notice.
